Temperature detection With 2 PNP/NPN Transistor Switching Outputs

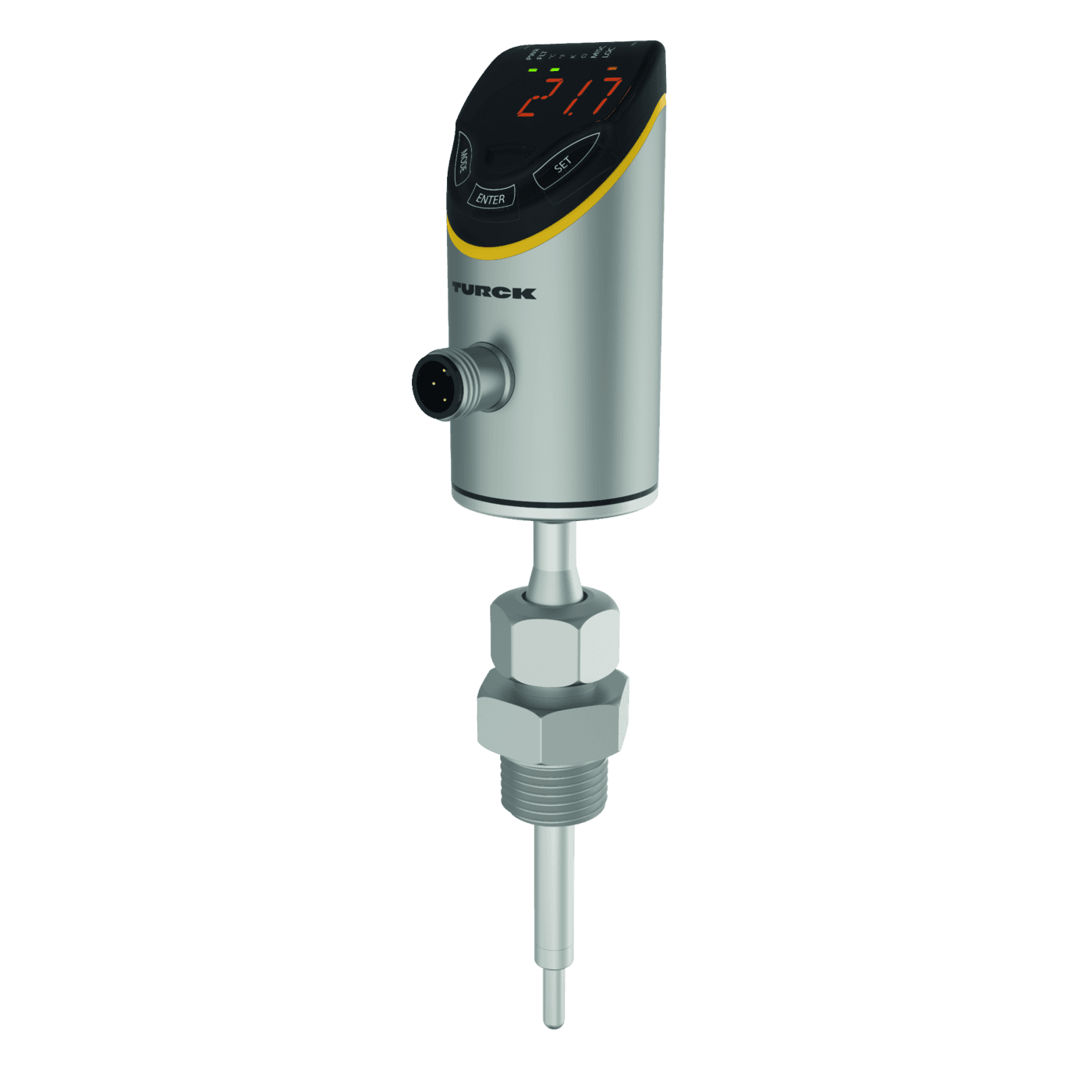

TS700-L050-16-2UPN8-H1141

Order ID nr. 100004379

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -40
Approvals: cULus
Communication protocol: IO-Link
Connector type
Dimensions: 162,4 mm x 38 mm x 50,2 mm
Electrical output: IO-Link,
Electrical connection: Connector
Housing material: Stainless-steel/Plastic
Housing quality
Immersion depth L (mm): 50
Materials (contact with media): Stainless steel 1.4404 (AISI 316L), FKM O-ring
Measuring range: -50...150 °C
Operating voltage: DC
Output function: PNP/NPN
Protection class: IP66, IP67, IP69K
