PT600R-2004-U1-DA91 | TURCK - Your Global Automation Partner

Pressure Transmitter

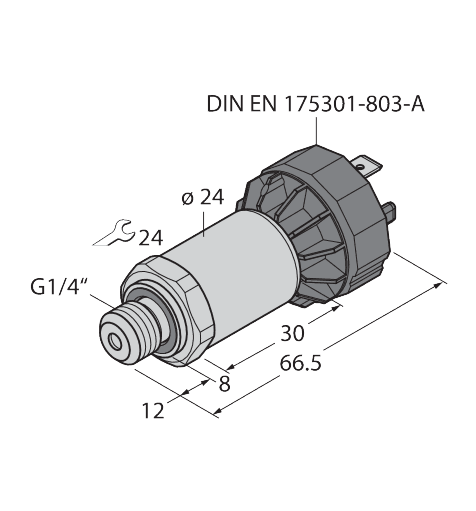

PT600R-2004-U1-DA91

Order ID nr. 6836639

homeHome
Loading...

Base unit: PCE
EAN/UPC code: 4047101400892
Electrical output: Voltage output (3-wire)
Gross weight: 117
Height: 40
Length: 100
Net weight: 117
Dimension unit: MMT
Weight unit: GRM
Volume: 0.28
Volume unit: DMQ
Width: 70
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Approvals: cULus
Electrical connection: Connector
Connector type: DIN EN 175301-803 Form A
Design: Without display
Housing material: Stainless-steel/Plastic
Housing quality: 1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Material pressure transducer: Stainless steel 1.4435 (AISI 316L)
Media temperature max. (°C): 135
Media temperature min. (°C): -40
Pressure range: 0...600 bar
Operating voltage: DC
Output function: Analog output voltage
Pressure type: Relative pressure
Protection class: IP65

Nyckelfunktioner

Electrical output: Voltage output (3-wire)

I lager
Varugrupp	J1
Listpris	1 566,00 kr

homeTurck-Shop
Sensors
Pressure Sensors
PT600R-2004-U1-DA91

Totalt för artikeln1 566,00 kr

Kvantitet
