Pressure Transmitter

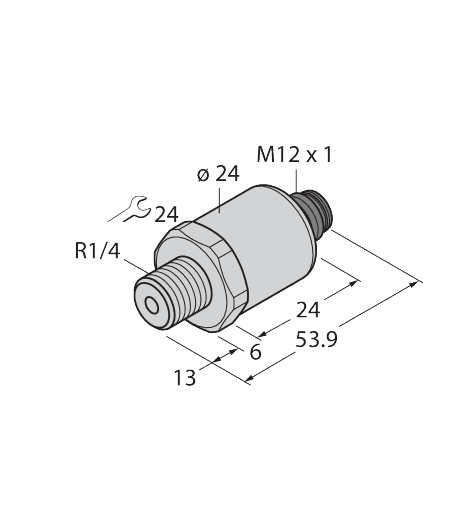

PT2.5V-1010-IOL-H1141
Order ID nr. 100038512
I lager
Varugrupp
G1
Listpris
1 821,00 kr
Totalt för artikeln
1 821,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Pressure Sensors
PT2.5V-1010-IOL-H1141
Tekniska data
Downloads
Base unit
PCE
EAN/UPC code
4047101593792
Electrical output
2 × switching output
Gross weight
83
Height
40
Length
100
Net weight
83
Dimension unit
MMT
Weight unit
GRM
Volume
0.28
Volume unit
DMQ
Width
70
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Approvals
cULus
Communication protocol
IO-Link
Electrical connection
Connector
Connector type
Design
Without display
Housing material
Stainless-steel/Plastic
Housing quality
1.4404 (AISI 316L)/polyarylamide 50 % GF UL 94 V-0
Media temperature max. (°C)
125
Media temperature min. (°C)
-40
Pressure range
-1...2,5 bar
Operating voltage
DC
Output function
PNP/NPN
Pressure type
Relative pressure
Protection class
IP67
Switching element function
Nyckelfunktioner
Communication protocol
IO-Link
Electrical output
2 × switching output
