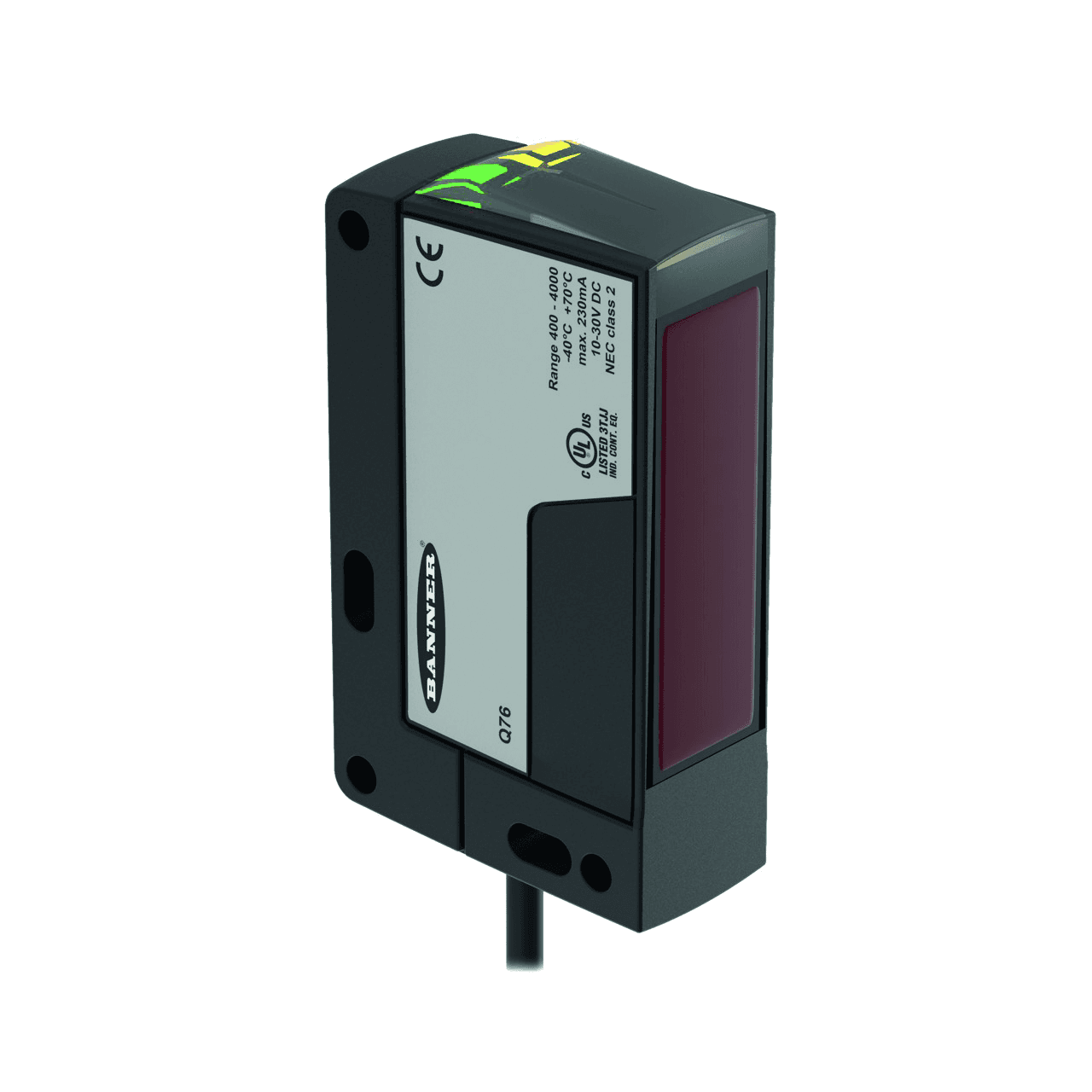

Photoelectric Sensor
Q76E-KP-ZLVC-Q5
Order ID nr. 3808858
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-40
Approvals
CE, cULus
Cable length (m)
0.2
Communication protocol
IO-Link
Connector type
Design
Rectangular

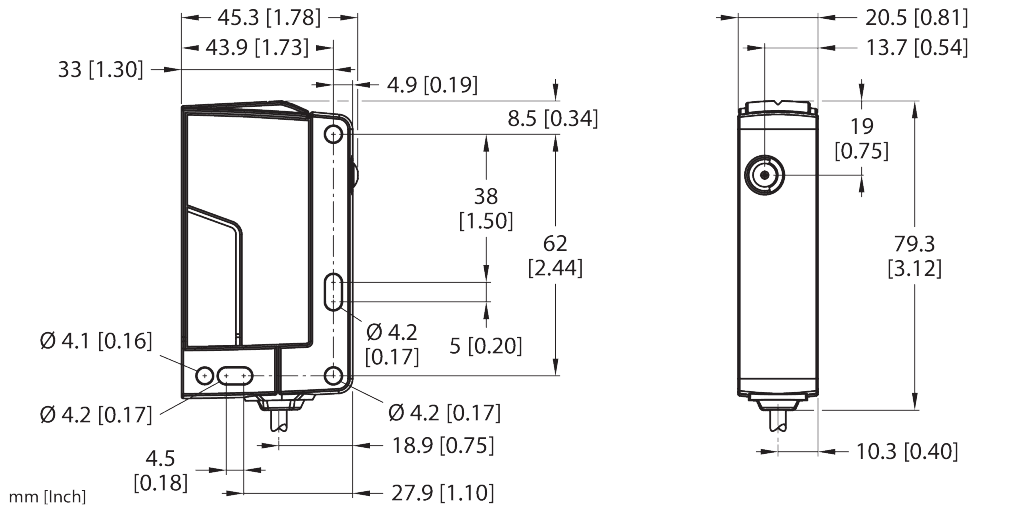

Dimensions
45,3 mm x 20,5 mm x 79,3 mm
Electrical connection
Cable with connector
Function
Retroreflective Sensor
Housing material
Plastic
Housing quality
PBT, PC
Light type
Red
Max. range (mm)
4000
Optical resolution (mm)
19
Output function
PNP/NPN
Protection class
IP67, IP69
Setting option
Push Button
Switching element function
Complementary contact
Wavelength (nm)
620
Nyckelfunktioner
Light type
Red
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
4000
I lager
Varugrupp
F3
Listpris
3 357,00 kr
