LM80KIQP | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric Sensor
LM80KIQP
Order ID nr. 3807393
home
Home
Loading...
Tekniska data
Downloads
Special features
, Clear object detection,
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Approvals
CE, cULus
Cable length (m)
0.15
Communication protocol
IO-Link
Electrical connection
Cable with connector
Connector type
Design
Rectangular

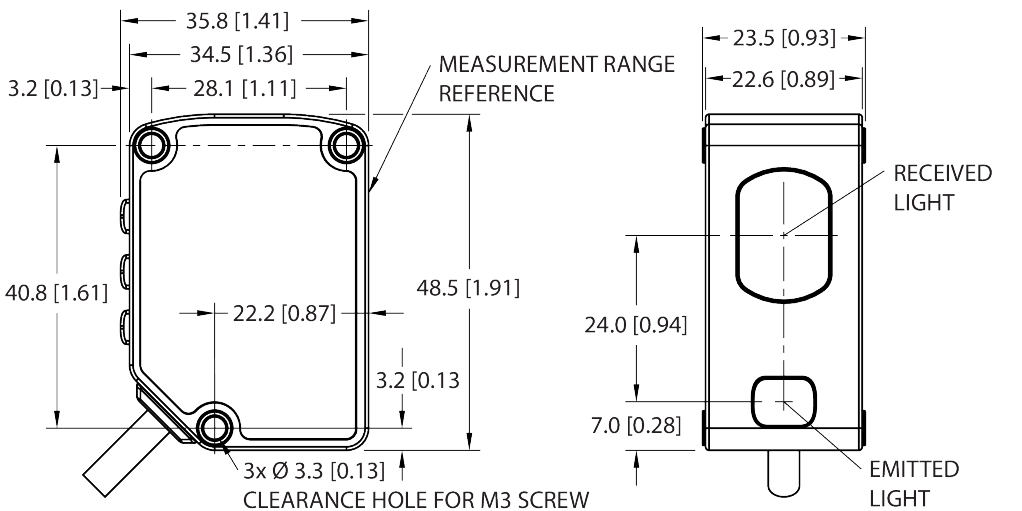

Dimensions
35,8 mm x 23,5 mm x 48,5 mm
Housing material
Metal
Housing quality
Stainless steel
Housing surface
Grey
Laser class
 2
Light type
Red
Operating mode
Triangulation
Optical resolution (mm)
0.002
Output function
PNP/NPN, analog output
Protection class
IP67
Max. range (mm)
80
Wavelength (nm)
655
Nyckelfunktioner
Light type
Red
Output function
PNP/NPN, analog output
Max. range (mm)
80
I lager
Varugrupp
F3
Listpris
17 975,00 kr
