Fotoelektriska givare Laseravståndsgivare (triangulering)

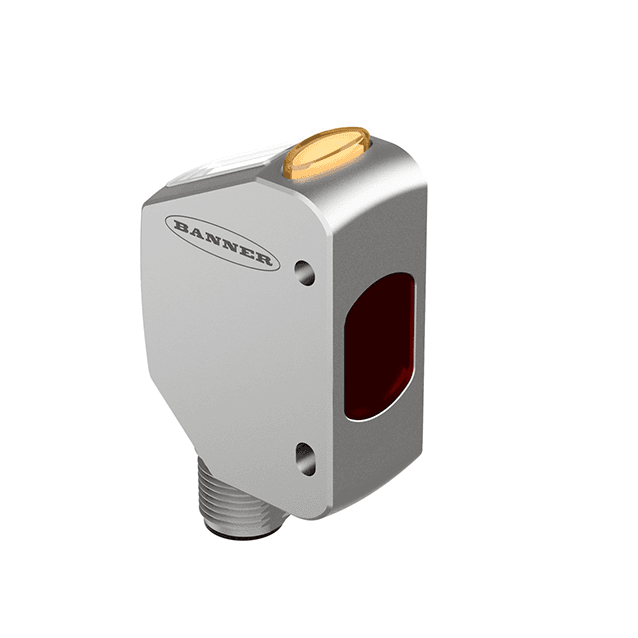

Q4XFKLAF610-Q8

Order ID nr. 3801424

Ambient temperature max. (°C): 50
Ambient temperature min. (°C): -10
Communication protocol: IO-Link
Connector type
Design: Rectangular

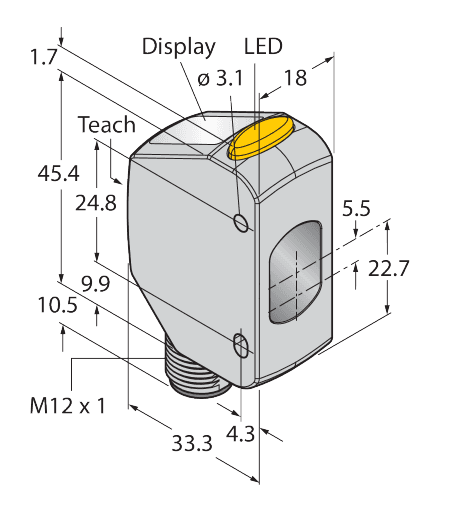

Dimensions: 33,5 mm x 18 mm x 57,5 mm
Display: 4-digit 7-segment LED display
Electrical connection: Connector
Housing material: Metal
Housing quality: Stainless steel
Laser class: 1
Light type: Red
Max. range (mm): 610
Operating mode: Background/foreground suppression
Optical resolution (mm): 1
Output function: Push-pull, PNP/NPN programmable
Protection class: IP67, IP68, IP69
Special features: behåll/skjut upp, Detektion av tydliga objekt, Kemikalieresistent, Resistent mot kemikalier, Tvätt
Switching element function
Wavelength (nm): 655
