Fotoelektriska givare Lasersensor

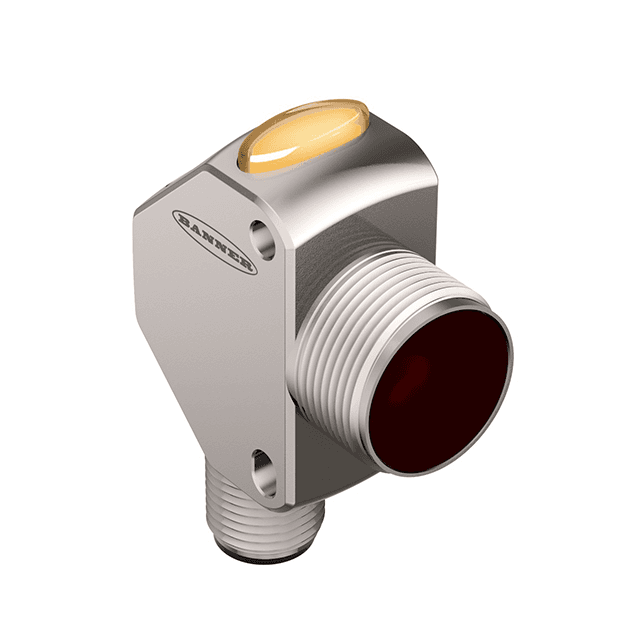

Q3XTBLD50-Q8
Order ID nr. 3091629
I lager
Varugrupp
F3
Listpris
3 941,00 kr
Totalt för artikeln
3 941,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Photoelectric Sensors
Q3XTBLD50-Q8
Tekniska data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-10
Connector type
Construction size
⌀ 18 mm
Design
Rectangular with thread

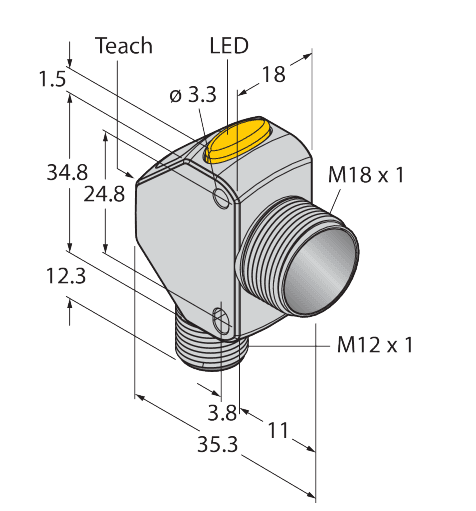

Dimensions
35,3 mm x 18 mm x 48,6 mm
Display
3-digit 7-segment LED display
Electrical connection
Connector
Housing material
Metal
Housing quality
Nickel-plated
Housing surface
Galvanized
Laser class
2
Light type
Red
Max. range (mm)
50
Operating mode
Diffuse/background suppression
Output function
PNP/NPN
Protection class
IP67, IP68, IP69
Setting option
Push Button, Remote Teach
Special features
Wash down,
Switching element function
Wavelength (nm)
655
Nyckelfunktioner
Light type
Red
Output function
PNP/NPN
Max. range (mm)
50
