QL56M6XD15BQ | TURCK - Your Global Automation Partner
Photoelectric Sensor
QL56M6XD15BQ
Order ID nr. 3081326
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-10
Electrical connection
Connector
Connector type
Design
Rectangular

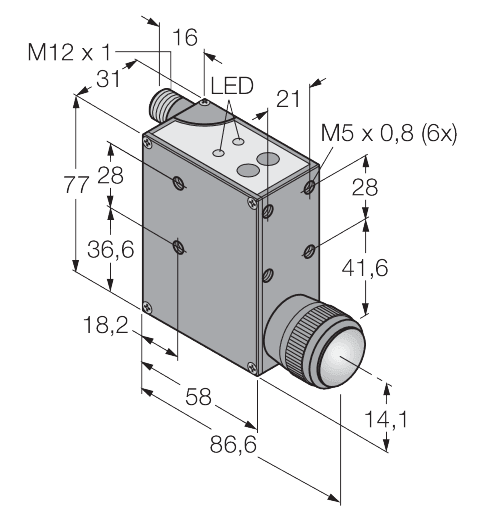

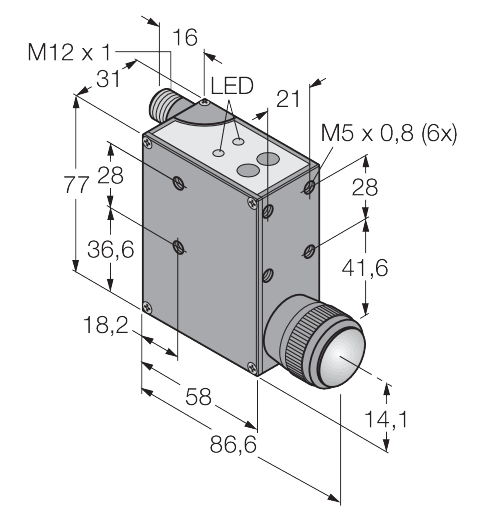

Dimensions
77 mm x 31 mm x 58 mm
Housing material
Metal
Housing quality
AL
Light type
UV
Function
Inspection sensor
Operating mode
Luminescence sensor
Output function
PNP/Analog output
Protection class
IP67
Max. range (mm)
20
Setting option
Push Button
Switching frequency (kHz)
2
Nyckelfunktioner
Light type
UV
Function
Inspection sensor
Output function
PNP/Analog output
Max. range (mm)
20
