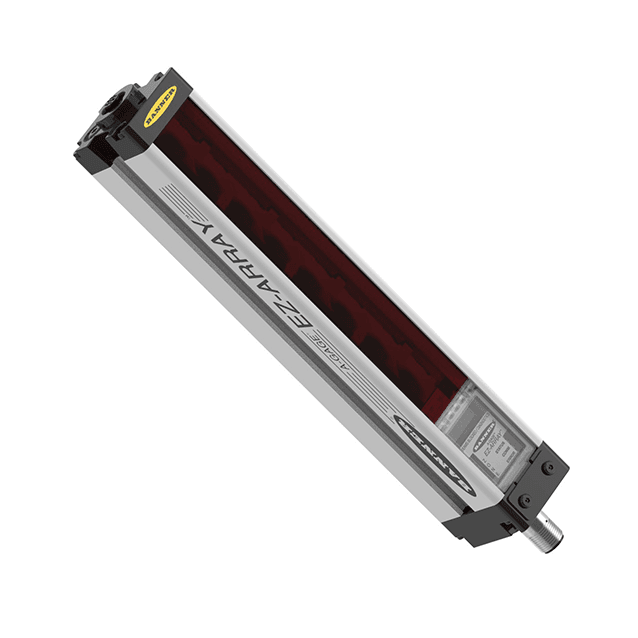

Measuring Light Screen
EA5R2100PIXMODQ
Order ID nr. 3078939
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Communication protocol
Modbus RTU, RS485
Electrical connection
Connector
Connector type
Design
Rectangular
Scan field (mm)
2100

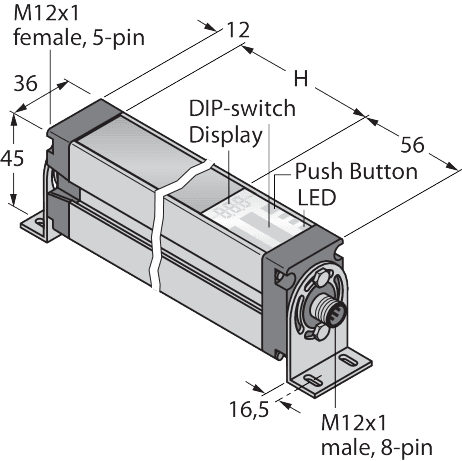

Dimensions
45,2 mm x 36 mm x 2178 mm
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Number of beams
420
Function
Light screen
Optical resolution (mm)
5
Output function
PNP/Analog output
Protection class
IP65
Max. range (mm)
4000
Nyckelfunktioner
Function
Light screen
Output function
PNP/Analog output
Max. range (mm)
4000
