Q20NDQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

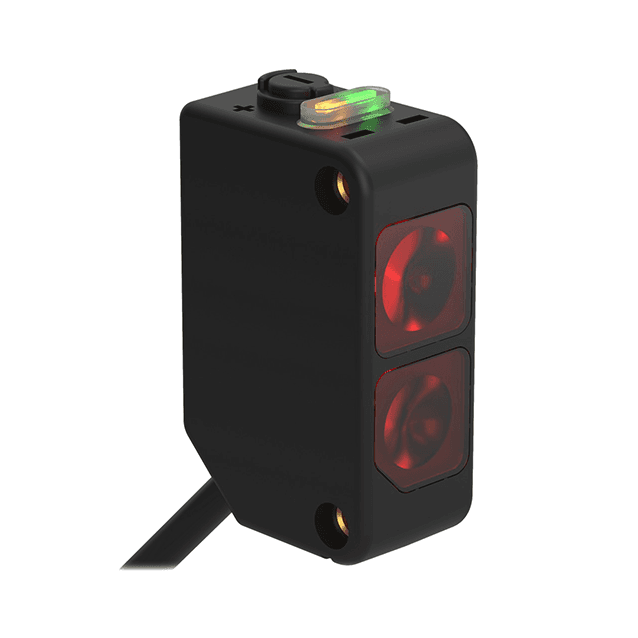

Photoelectric Sensor
Q20NDQ
Order ID nr. 3078212
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
Design
Rectangular

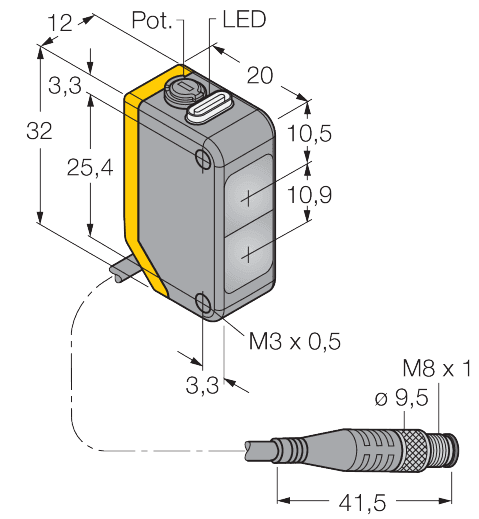

Dimensions
20 mm x 12 mm x 32 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Operating mode
Diffuse
Output function
NPN
Protection class
IP67
Max. range (mm)
250
Setting option
Potentiometer
Switching element function
Complementary contact
Wavelength (nm)
655
Nyckelfunktioner
Light type
Red
Output function
NPN
Max. range (mm)
250
home
Turck-Shop
Sensors
Photoelectric Sensors
Q20NDQ
I lager
Varugrupp
F3
Listpris
1 426,00 kr
Totalt för artikeln
1 426,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
