Measuring Light Screen
EA5E1800Q
Order ID nr. 3075432
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
Design
Rectangular
Scan field (mm)
1800

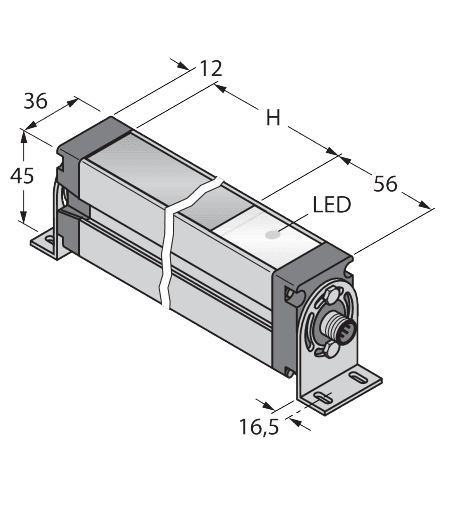

Dimensions
45,2 mm x 36 mm x 1878 mm
Housing material
Metal
Housing quality
AL
Housing surface
Anodized
Light type
IR
Number of beams
360
Function
Light screen
Operating mode
Emitter
Optical resolution (mm)
5
Protection class
IP65
Max. range (mm)
4000
Nyckelfunktioner
Light type
IR
Function
Light screen
Max. range (mm)
4000
I lager
Varugrupp
F3
Listpris
34 534,00 kr
