Photoelectric Sensor
SLM120B6
Order ID nr. 3074985
I lager
Varugrupp
F3
Listpris
2 731,00 kr
Totalt för artikeln
2 731,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Photoelectric Sensors
SLM120B6
Tekniska data
Downloads
Base unit
PCE
EAN/UPC code
662488749859
Gross weight
559
Height
50
Length
240
Net weight
559
Dimension unit
MMT
Weight unit
GRM
Volume
2520
Volume unit
CMQ
Width
210
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Fork

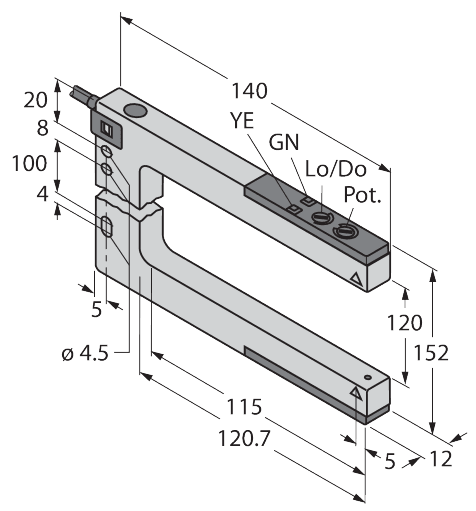

Dimensions
140 mm x 12 mm x 152 mm
Housing material
Metal
Housing quality
Zinc Die-Cast with Nickel-Plating
Light type
Red
Function
Slot sensor
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
120
Setting option
Potentiometer
Wavelength (nm)
680
Nyckelfunktioner
Light type
Red
Function
Slot sensor
Output function
PNP/NPN
Max. range (mm)
120
