Photoelectric Sensor
QS30LVQPMA
Order ID nr. 3073232
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
Design
Rectangular with thread
Construction size
⌀ 30 mm

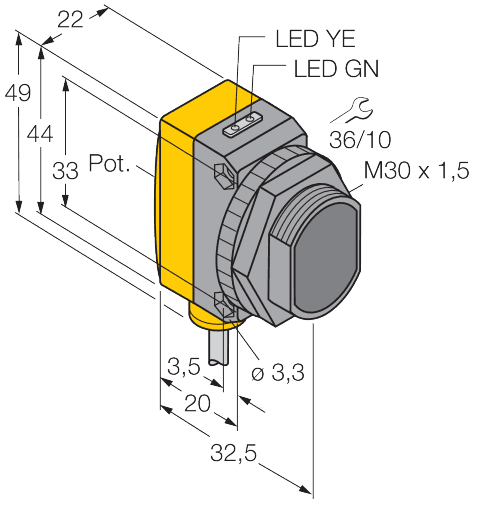

Dimensions
35 mm x 22 mm x 49 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red
Function
Retroreflective Sensor
Operating mode
Unpolarized
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
12000
Setting option
Potentiometer
Wavelength (nm)
630
Nyckelfunktioner
Light type
Red
Function
Retroreflective Sensor
Output function
PNP/NPN
Max. range (mm)
12000
I lager
Varugrupp
F3
Listpris
1 971,00 kr
