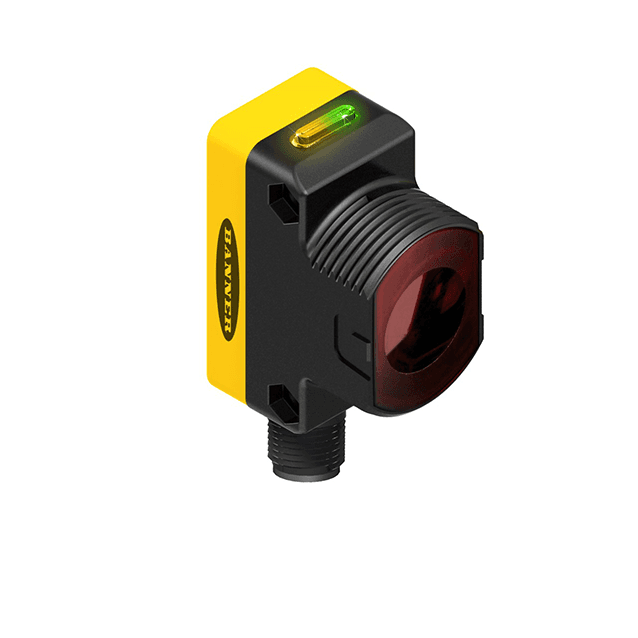

Photoelectric Sensor
QS30DQ
Order ID nr. 3073095
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
Design
Rectangular with thread
Construction size
⌀ 30 mm

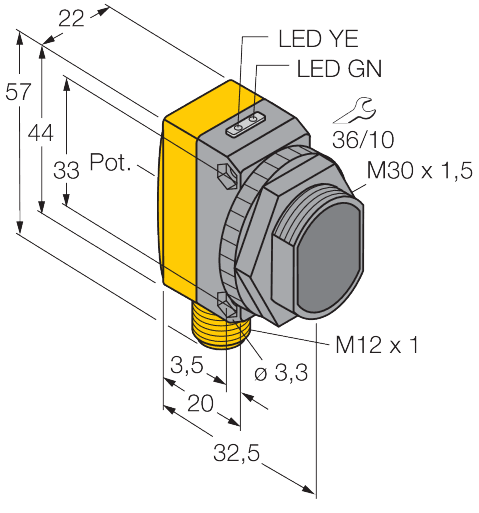

Dimensions
35 mm x 22 mm x 57 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
IR
Operating mode
Diffuse
Output function
PNP/NPN
Protection class
IP67
Max. range (mm)
1000
Setting option
Potentiometer
Wavelength (nm)
940
Nyckelfunktioner
Light type
IR
Output function
PNP/NPN
Max. range (mm)
1000
I lager
Varugrupp
F3
Listpris
1 458,00 kr
