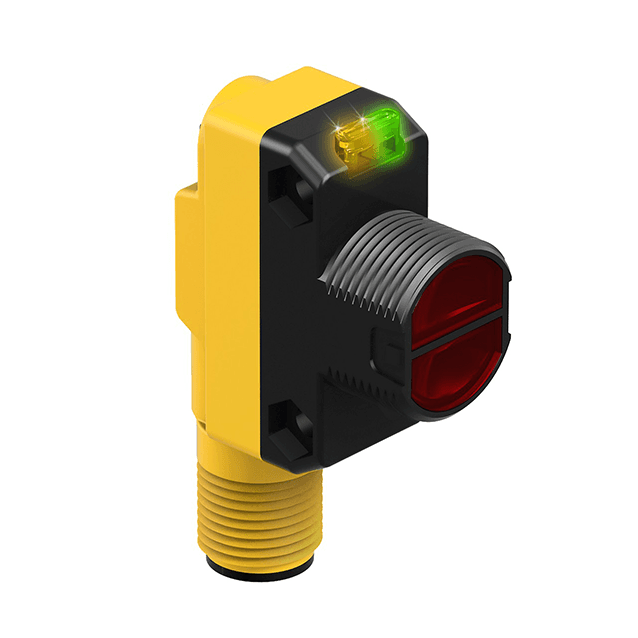

Photoelectric Sensor
QS18EP6LPQ8
Order ID nr. 3071987
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
Design
Rectangular with thread
Construction size
⌀ 18 mm

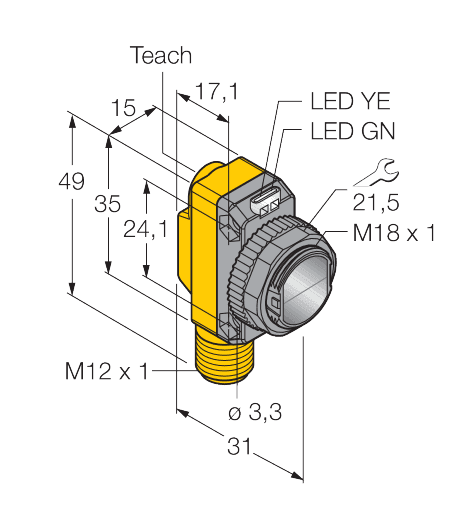

Dimensions
31 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
Red polarized
Function
Retroreflective Sensor
Operating mode
Polarized
Output function
PNP
Protection class
IP67
Max. range (mm)
3500
Setting option
Push Button, Remote Teach
Wavelength (nm)
630
Nyckelfunktioner
Light type
Red polarized
Function
Retroreflective Sensor
Output function
PNP
Max. range (mm)
3500
home
Turck-Shop
Sensors
Photoelectric Sensors
QS18EP6LPQ8
I lager
Varugrupp
F3
Listpris
1 276,00 kr
Totalt för artikeln
1 276,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
