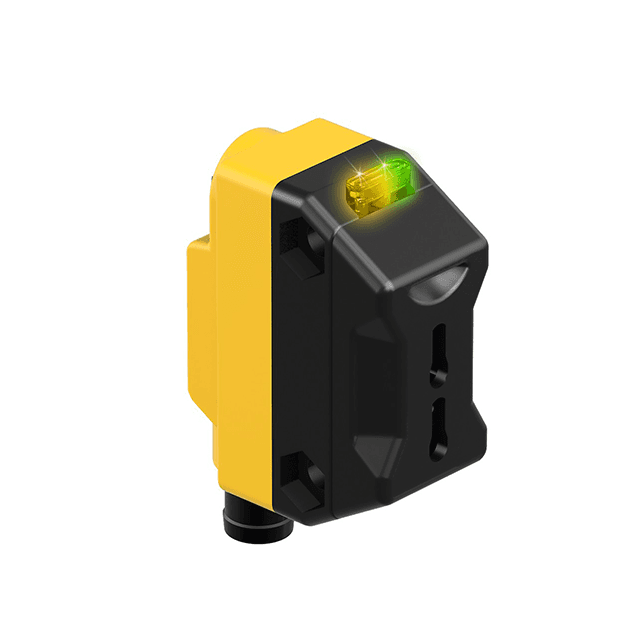

Photoelectric Sensor
QS18VN6FPQ7
Order ID nr. 3066445
I lager
Varugrupp
F3
Listpris
1 276,00 kr
Totalt för artikeln
1 276,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Downloads
Special features
Wash down
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Electrical connection
Connector
Connector type
Design
Rectangular

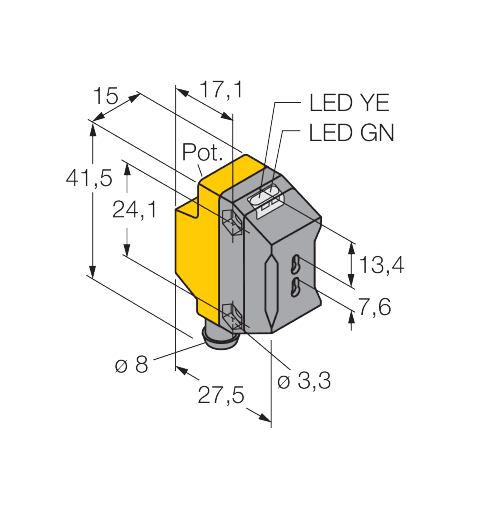

Dimensions
27,5 mm x 15 mm x 41,5 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Fiber optic sensor
Operating mode
Plastic fiber
Output function
NPN
Measuring principle
Optical
Protection class
IP67
Setting option
Potentiometer
Switching element function
Wavelength (nm)
660
Nyckelfunktioner
Light type
Red
Function
Fiber optic sensor
Output function
NPN
