QS18VN6DBQ5 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Photoelectric Sensor
QS18VN6DBQ5
Order ID nr. 3064594
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
Design
Rectangular

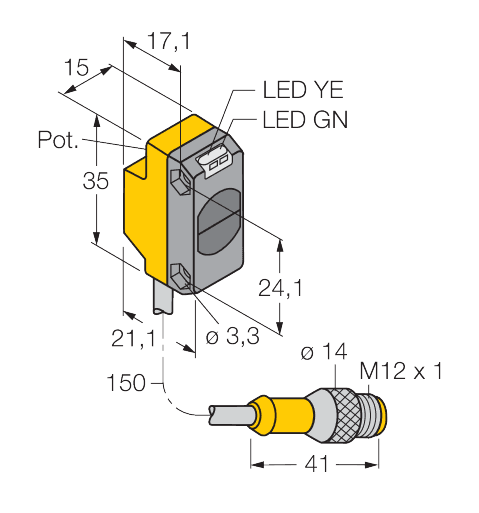

Dimensions
21,1 mm x 15 mm x 35 mm
Housing material
Plastic
Housing quality
ABS
Light type
IR
Operating mode
Diffuse
Output function
NPN
Protection class
IP67
Max. range (mm)
450
Setting option
Potentiometer
Switching element function
Wavelength (nm)
940
Nyckelfunktioner
Light type
IR
Output function
NPN
Max. range (mm)
450
I lager
Varugrupp
F3
Listpris
1 474,00 kr
