QS18VN6CV45 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

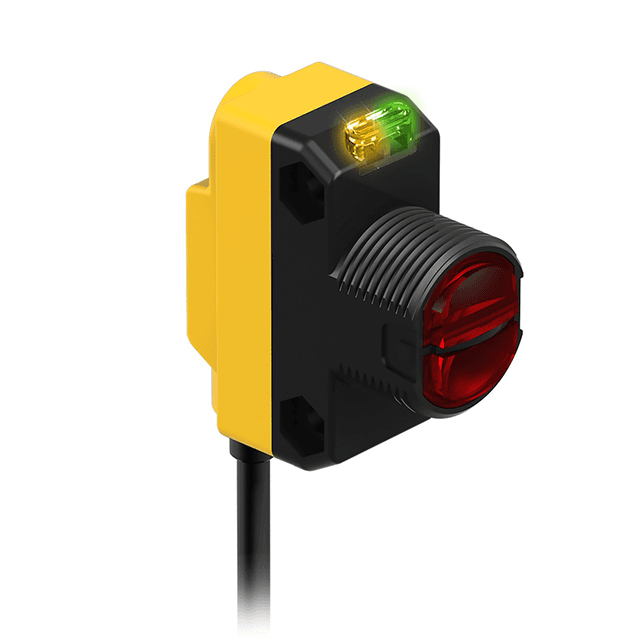

Photoelectric Sensor
QS18VN6CV45
Order ID nr. 3061645
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular with thread
Construction size
⌀ 18 mm

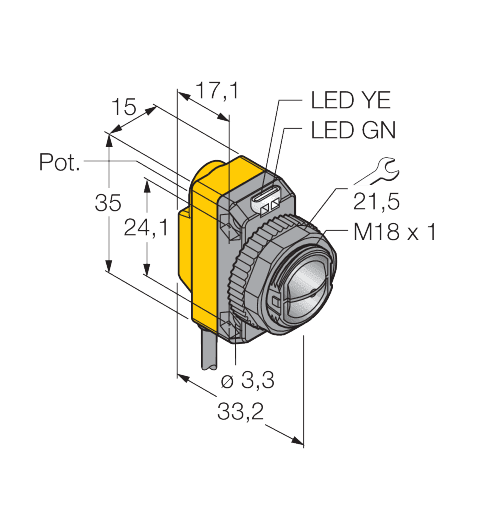

Dimensions
33,2 mm x 15 mm x 35 mm
Focal distance (mm)
43
Housing material
Plastic
Housing quality
ABS
Light type
Red
Operating mode
Convergent
Output function
NPN
Protection class
IP67
Max. range (mm)
43
Setting option
Potentiometer
Switching element function
Wavelength (nm)
630
Nyckelfunktioner
Light type
Red
Output function
NPN
Max. range (mm)
43
