Photoelectric Sensor
QMT42VN6AFV400Q
Order ID nr. 3046857
I lager
Varugrupp
F3
Listpris
4 191,00 kr
Totalt för artikeln
4 191,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Photoelectric Sensors
QMT42VN6AFV400Q
Tekniska data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Connector type
Design
Rectangular

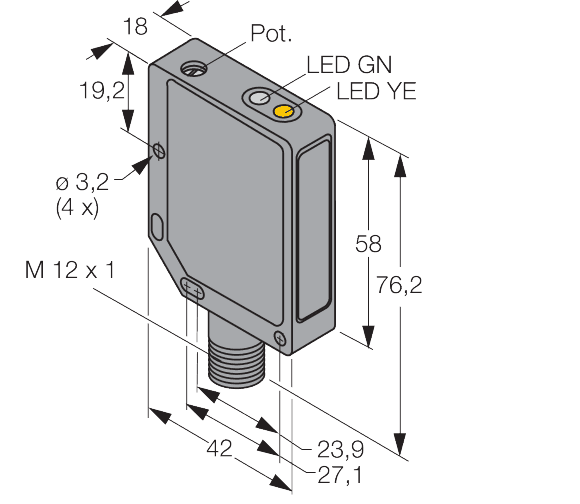

Dimensions
42 mm x 18 mm x 76,2 mm
Electrical connection
Connector
Housing material
Metal
Housing quality
Zinc Alloy Die-Cast
Housing surface
Black-finished
Light type
Red
Max. range (mm)
400
Operating mode
Background suppression, adjustable
Output function
NPN
Protection class
IP67
Setting option
Potentiometer
Switching element function
Wavelength (nm)
680
Nyckelfunktioner
Light type
Red
Output function
NPN
Max. range (mm)
400
Begär offert
