Q10AP6D | TURCK - Your Global Automation Partner
Photoelectric Sensor
Q10AP6D
Order ID nr. 3044861
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular

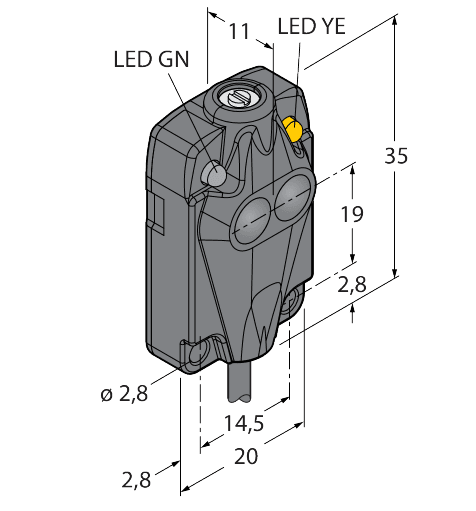

Dimensions
35 mm x 20 mm x 10 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Black
Light type
IR
Operating mode
Diffuse
Output function
PNP
Protection class
IP67
Max. range (mm)
500
Setting option
Potentiometer
Switching frequency (kHz)
0.15
Wavelength (nm)
880
Nyckelfunktioner
Light type
IR
Output function
PNP
Max. range (mm)
500
I lager
Varugrupp
B1
Listpris
2 012,00 kr
