MIAD9CV2Q | TURCK - Your Global Automation Partner
Photoelectric Sensor
MIAD9CV2Q
Order ID nr. 3035235
home
Home
Loading...
Tekniska data
Downloads
Special features
Encapsulated
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
Design
Rectangular with thread
Construction size
⌀ 18 mm

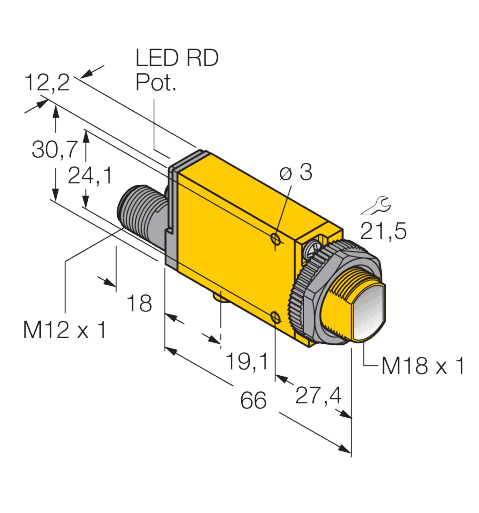

Dimensions
84 mm x 12,3 mm x 30,7 mm
Focal distance (mm)
43
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
Red
Operating mode
Convergent
Output function
NAMUR
Protection class
IP67
Max. range (mm)
43
Setting option
Potentiometer
Switching element function
Light operation
Wavelength (nm)
650
Nyckelfunktioner
Light type
Red
Output function
NAMUR
Max. range (mm)
43
I lager
Varugrupp
F3
Listpris
2 925,00 kr
home
Turck-Shop
Sensors
Photoelectric Sensors
MIAD9CV2Q
Totalt för artikeln
2 925,00 kr
