MIAD9WQ | TURCK - Your Global Automation Partner
Photoelectric Sensor
MIAD9WQ
Order ID nr. 3035233
home
Home
Loading...
Tekniska data
Downloads
Special features
Encapsulated
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Electrical connection
Connector
Connector type
Design
Rectangular

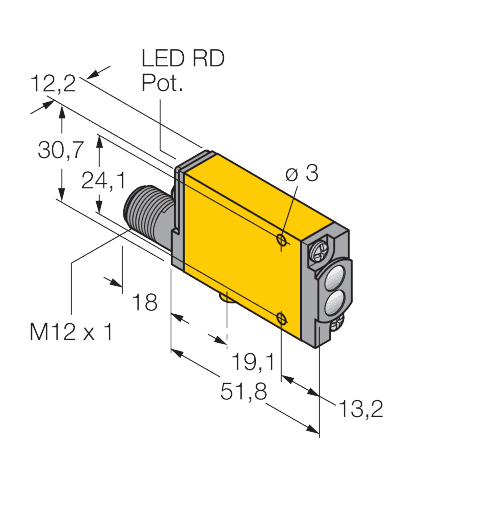

Dimensions
69,8 mm x 12,3 mm x 30,7 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Light type
IR
Operating mode
Divergent
Output function
NAMUR
Protection class
IP67
Max. range (mm)
75
Setting option
Potentiometer
Switching element function
Light operation
Wavelength (nm)
880
Nyckelfunktioner
Light type
IR
Output function
NAMUR
Max. range (mm)
75
I lager
Varugrupp
F3
Listpris
2 588,00 kr
home
Turck-Shop
Sensors
Photoelectric Sensors
MIAD9WQ
Totalt för artikeln
2 588,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
