Photoelectric Sensor
D12SP6FPHQ
Order ID nr. 3034974
I lager
Varugrupp
B1
Listpris
3 419,00 kr
Totalt för artikeln
3 419,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Photoelectric Sensors
D12SP6FPHQ
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Cable length (m)
0.15
Electrical connection
Cable with connector
Connector type
Design
Rectangular

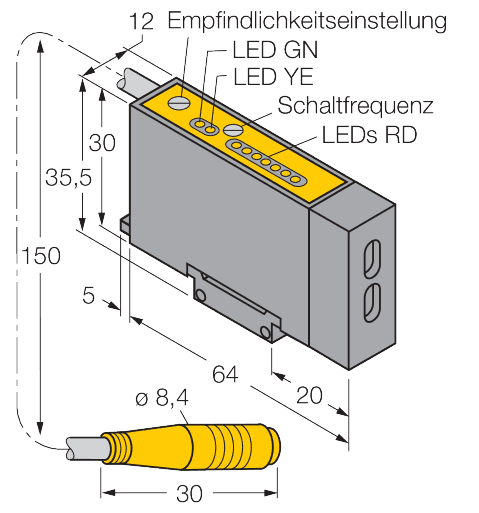

Dimensions
64 mm x 12 mm x 30 mm
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
Red
Function
Fiber optic sensor
Operating mode
Plastic fiber
Output function
PNP
Protection class
IP11
Setting option
Potentiometer
Switching element function
Switching frequency (kHz)
1
Wavelength (nm)
680
Nyckelfunktioner
Light type
Red
Function
Fiber optic sensor
Output function
PNP
