Fotoelektriska givare Retroreflektiv givare
T18RW3LQ1
Order ID nr. 3034929
I lager
Varugrupp
F3
Listpris
1 560,00 kr
home
Turck-Shop
Sensors
Photoelectric Sensors
T18RW3LQ1
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Construction size
⌀ 18 mm
Design
Tube

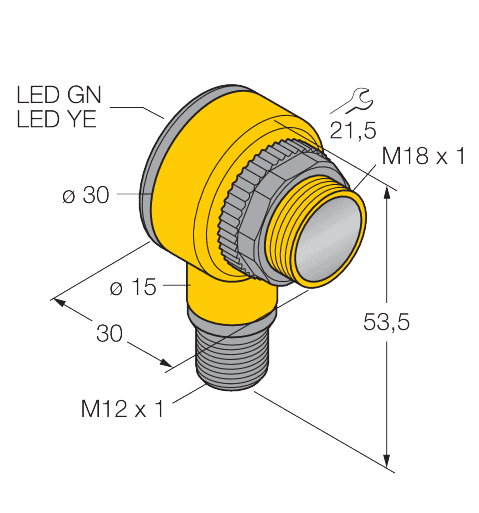

Dimensions
30 mm x 30 mm x 54 mm
Electrical connection
Connector
Function
Retroreflective Sensor
Housing material
Plastic
Housing quality
Thermoplastic material
Light type
IR
Max. range (mm)
2000
Operating mode
Unpolarized
Output function
Relay output
Protection class
IP67, IP69
Setting option
Potentiometer
Special features
Inkapslad, Kemikalieresistent, Tvätt
Switching element function
Dark operation
Wavelength (nm)
950
Nyckelfunktioner
Light type
IR
Function
Retroreflective Sensor
Output function
Relay output
Max. range (mm)
2000
Totalt för artikeln
1 560,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
