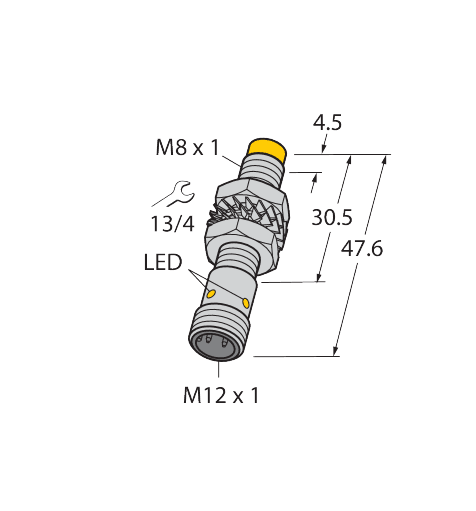

Inductive Sensor
NI5-M08-AP6X-H1341
Order ID nr. 4602922
I lager
Varugrupp
E1
Listpris
1 030,00 kr
Totalt för artikeln
1 030,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
NI5-M08-AP6X-H1341
Tekniska data
Downloads
Special features
Sn +
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Threaded barrel
Construction size
⌀ 8 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Nickel Plated
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PP-GF20
Rated switching distance (mm)
5
Switching frequency (kHz)
2.8
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
Rated switching distance (mm)
5
