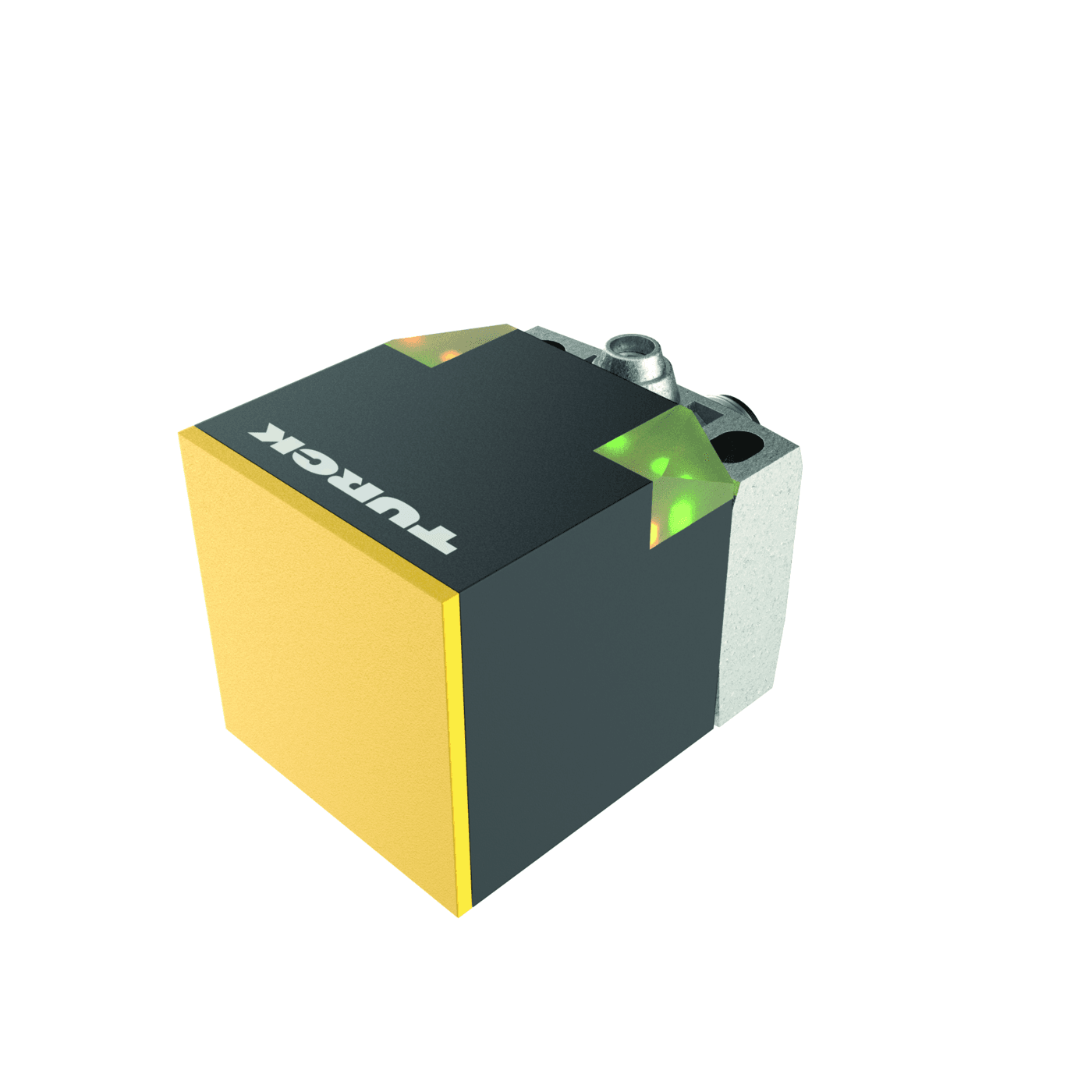

Inductive Sensor
NI20-CK40-Y1X-H1141
Order ID nr. 4065200
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Rectangular

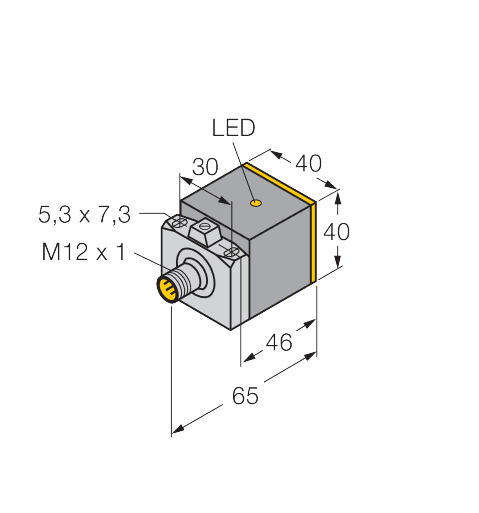

Dimensions
65 mm x 40 mm x 40 mm
Housing material
Plastic
Housing quality
PBT-GF20-V0
Housing surface
Black
Operating voltage
DC
Output function
NAMUR
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
20
Switching frequency (kHz)
0.15
Nyckelfunktioner
Electrical connection
Connector
Output function
NAMUR
Rated switching distance (mm)
20
I lager
Varugrupp
E1
Listpris
696,00 kr
