Inductive Sensor

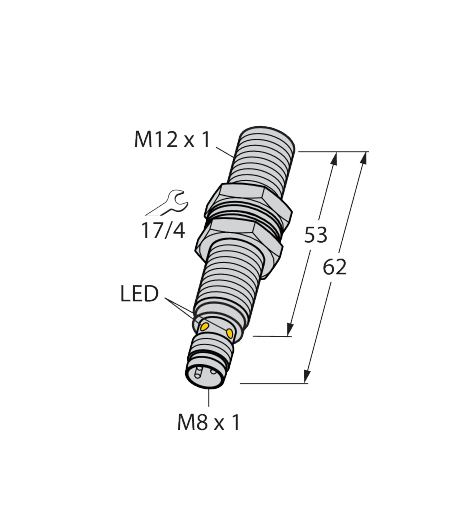

BI4-G12-AP6X-V1131
Order ID nr. 1690703
I lager
Varugrupp
E1
Listpris
1 338,00 kr
Totalt för artikeln
1 338,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
BI4-G12-AP6X-V1131
Tekniska data
Downloads
Special features
Sn +
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Threaded barrel
Construction size
⌀ 12 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
4
Switching frequency (kHz)
2
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
Rated switching distance (mm)
4
