Inductive Sensor

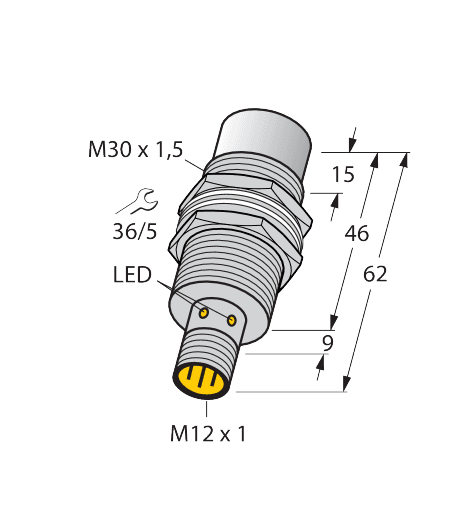

NI20U-MT30-AN6X-H1141

Order ID nr. 1646250

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type
Design: Threaded barrel
Construction size: ⌀ 30 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Operating voltage: DC
Output function: NPN
Protection class: IP68
Quality active face: PBT
Rated switching distance (mm): 20
Switching frequency (kHz): 1
