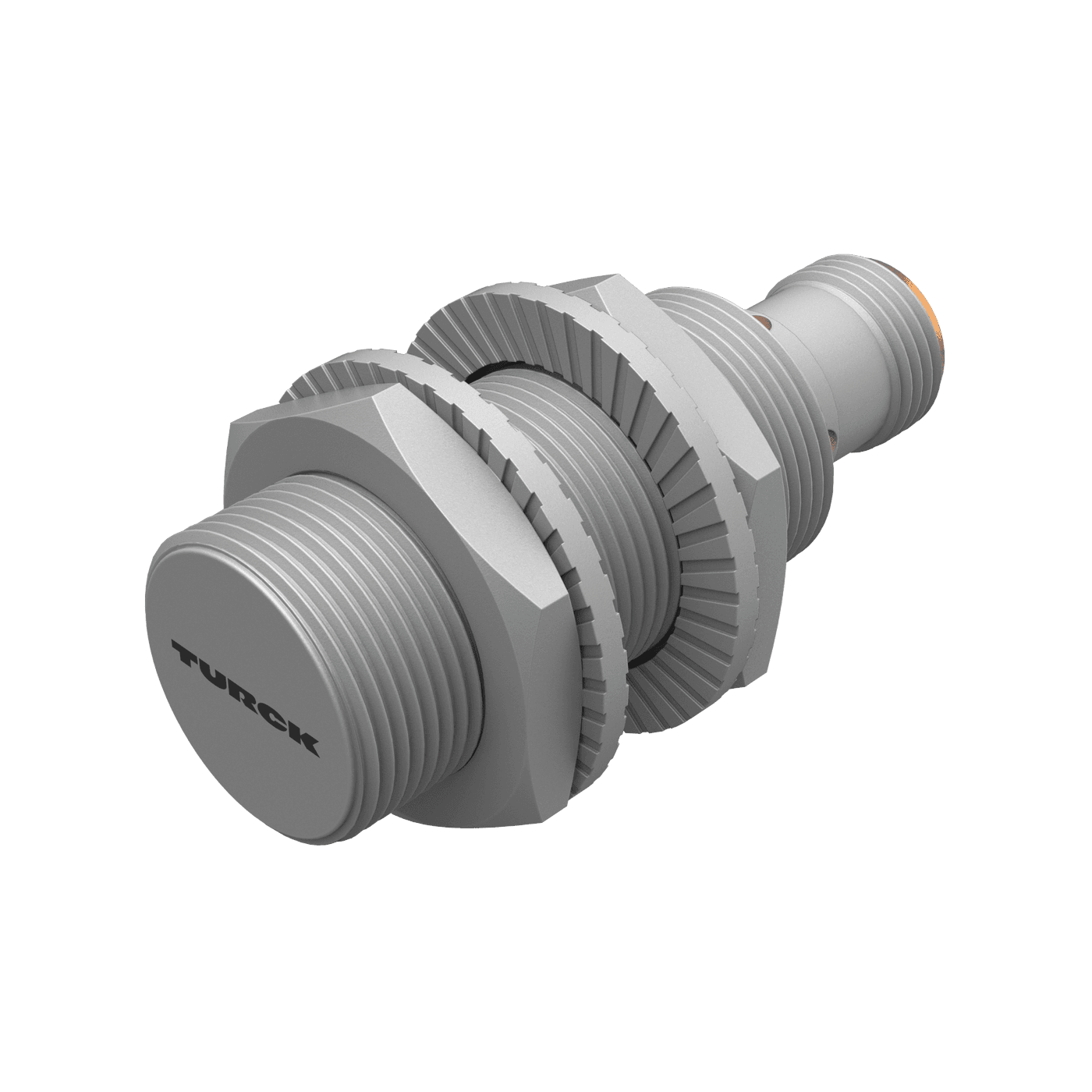

Inductive Sensor

BI8U-MT18-AP6X-H1141/S1589

Order ID nr. 1644789

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated,
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type
Design: Threaded barrel

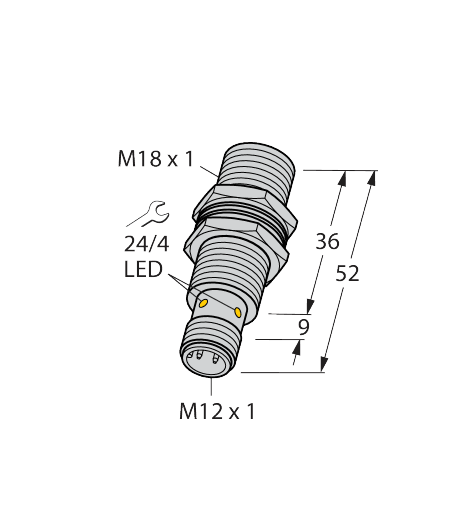

Construction size: ⌀ 18 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP + WeldGuard™
Rated switching distance (mm): 8
Switching frequency (kHz): 1.5
