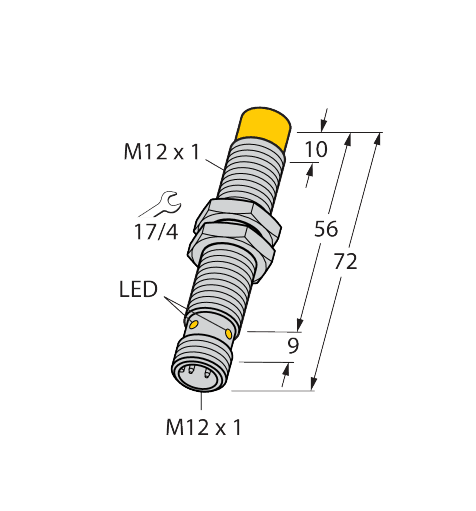

Inductive Sensor
NI8U-M12EE-AP6X-H1141
Order ID nr. 1644147
I lager
Varugrupp
E1
Listpris
764,00 kr
Totalt för artikeln
764,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
NI8U-M12EE-AP6X-H1141
Tekniska data
Downloads
Special features
uprox+, Factor 1, Resistant to magnetic fields
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Electrical connection
Connector
Connector type
Design
Threaded barrel
Construction size
⌀ 12 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Operating voltage
DC
Output function
PNP
Protection class
IP68
Quality active face
LCP
Rated switching distance (mm)
8
Switching frequency (kHz)
2
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
Rated switching distance (mm)
8
