Inductive Sensor

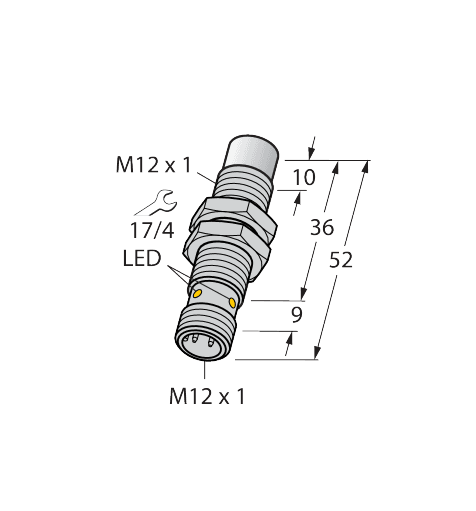

NI10U-EM12WD-AP6X-H1141

Order ID nr. 1634814

Special features: uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Electrical connection: Connector
Connector type
Design: Threaded barrel
Construction size: ⌀ 12 mm
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 10
Switching frequency (kHz): 1
