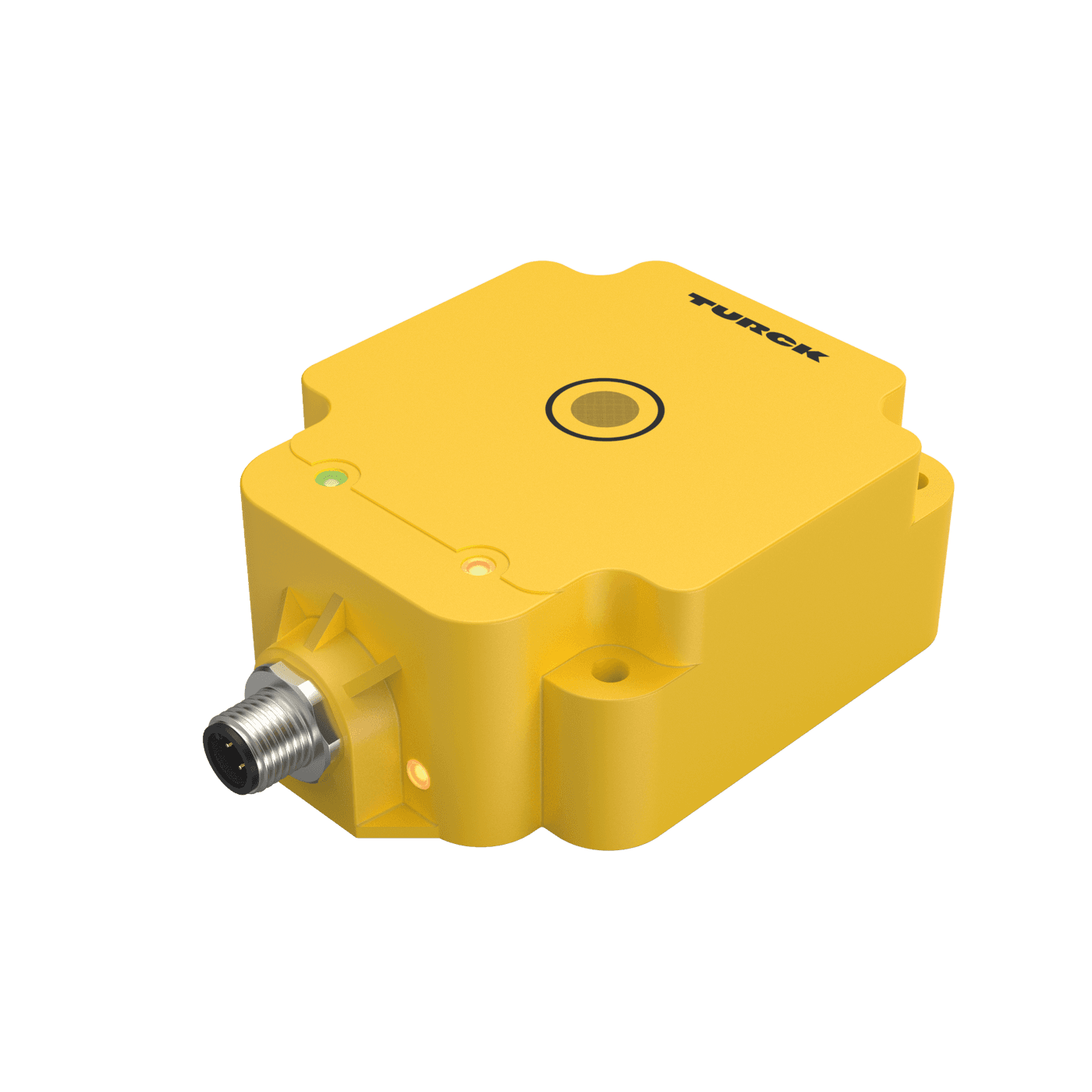

Inductive Sensor
BI50U-Q80-AP6X2-H1141
Order ID nr. 1608940
I lager
Varugrupp
E2
Listpris
2 006,00 kr
Totalt för artikeln
2 006,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Inductive Sensors
BI50U-Q80-AP6X2-H1141
Tekniska data
Downloads
Special features
uprox+, Factor 1, Resistant to magnetic fields
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Rectangular

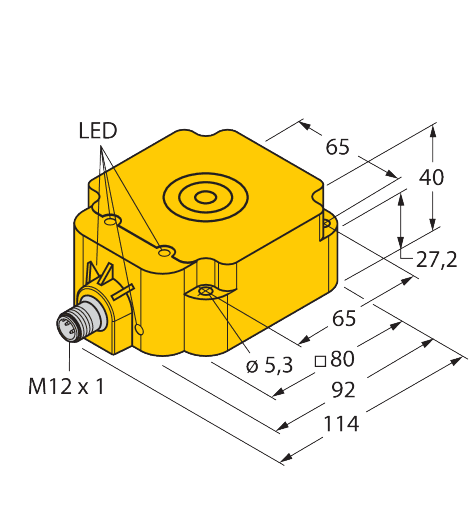

Dimensions
92 mm x 80 mm x 40 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Housing surface
Yellow
Operating voltage
DC
Output function
PNP
Protection class
IP68
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
50
Switching frequency (kHz)
0.25
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
Rated switching distance (mm)
50
Begär offert
