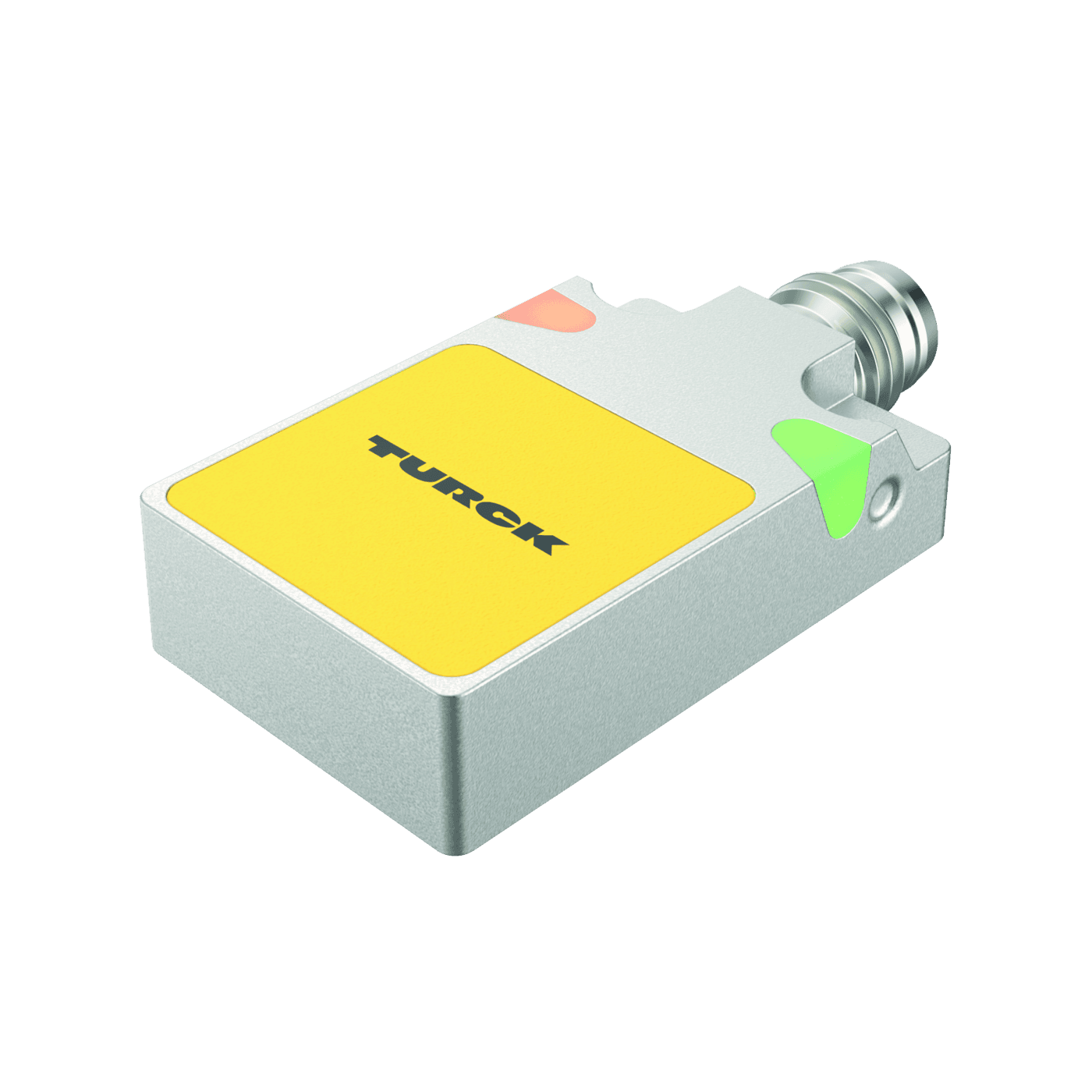

Inductive Sensor
BI7-Q08-VP6X2-V1141
Order ID nr. 1600902
I lager
Varugrupp
E1
Listpris
1 128,00 kr
Totalt för artikeln
1 128,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Downloads
Special features
Sn +
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Rectangular

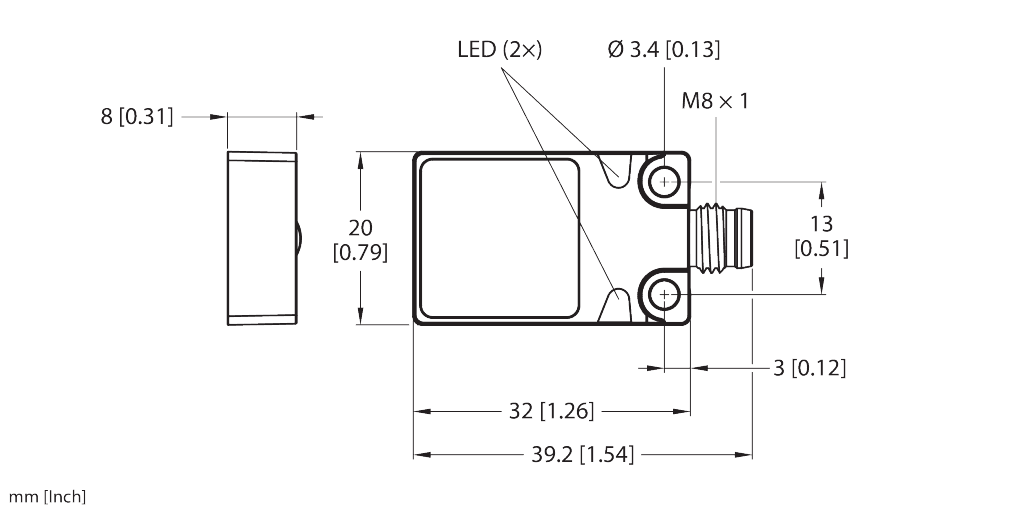

Dimensions
32 mm x 20 mm x 8 mm
Housing material
Metal
Housing quality
Zamak
Housing surface
Nickel Plated
Operating voltage
DC
Output function
PNP
Protection class
IP68
Quality active face
PP
Rated switching distance (mm)
7
Switching element function
Complementary contact
Switching frequency (kHz)
0.5
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
Rated switching distance (mm)
7
