Inductive Sensor

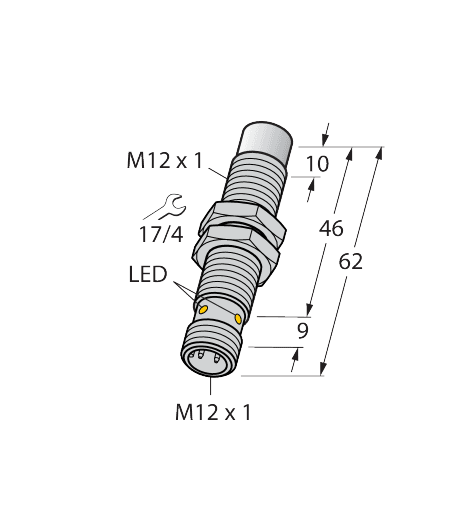

NI8U-MT12E-VP4X-H1141

Order ID nr. 1580455

Special features: uprox+, Factor 1, Resistant to magnetic fields, PTFE-coated
Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -30
Electrical connection: Connector
Connector type
Design: Threaded barrel
Construction size: ⌀ 12 mm
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 8
Switching element function: Complementary contact
Switching frequency (kHz): 1
