DBI15U-K40SR-AP4X2 | TURCK - Your Global Automation Partner

Inductive Sensor

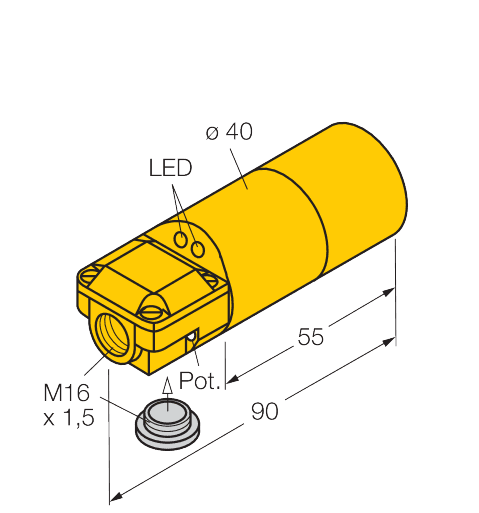

DBI15U-K40SR-AP4X2

Order ID nr. 1500201

homeHome
Loading...

Protection class: IP67
Switching element function: NO contact
Output function: PNP
Design: Smooth barrel
Electrical connection: Terminal chamber
Housing material: Plastic
Housing quality: ABS
Ambient temperature min. (°C): -30
Ambient temperature max. (°C): 85
Mounting conditions: Flush
Operating voltage: DC
Rated switching distance (mm): 15
Construction size: Ø 40 mm
Base unit: PCE
EAN/UPC code: 4047101069679
Gross weight: 177
Height: 50
Length: 90
Net weight: 177
Dimension unit: MMT
Weight unit: GRM
Volume: 315
Volume unit: CMQ
Width: 70
Dimensions: 40 mm x 90 mm
Housing surface: Yellow
Quality active face: ABS

Nyckelfunktioner

Electrical connection: Terminal chamber
Mounting conditions: Flush
Output function: PNP
Rated switching distance (mm): 15

I lager
Varugrupp	E1
Listpris	2 873,00 kr
