Inductive Sensor
BI15R-W30-DAP6X-H1141
Order ID nr. 14040
I lager
Varugrupp
E1
Listpris
2 501,00 kr
Totalt för artikeln
2 501,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Protection class
IP67
Switching element function
NO contact
Output function
PNP
Design
Ring sensor
Electrical connection
Connector
Connector type
Housing material
Plastic
Housing quality
PA12-GF30
Ambient temperature min. (°C)
-25
Ambient temperature max. (°C)
70
Inside ring diameter D (mm)
15.1
Operating voltage
DC
Construction size
60 x 35 x 30 mm
Base unit
PCE
Special features
Ring sensor, dynamic output
EAN/UPC code
4047101000771
Gross weight
80
Height
30
Length
70
Net weight
80
Dimension unit
MMT
Weight unit
GRM
Volume
84
Volume unit
CMQ
Width
40

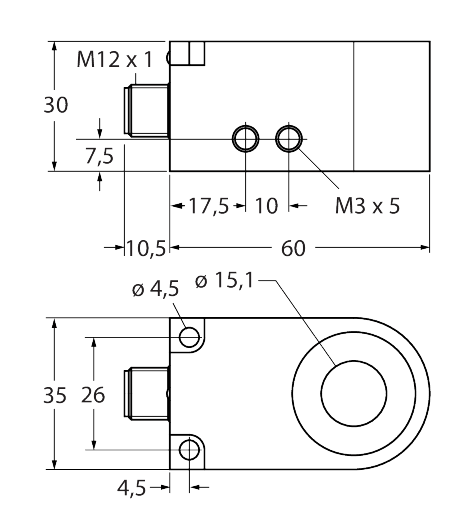

Dimensions
60 mm x 35 mm x 30 mm
Switching frequency (kHz)
0.008
Nyckelfunktioner
Electrical connection
Connector
Output function
PNP
