Inductive Sensor
BI10R-W30-DAN6X-H1141
Order ID nr. 14039
I lager
Varugrupp
E1
Listpris
2 501,00 kr
Totalt för artikeln
2 501,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Turck-Shop
Sensors
Inductive Sensors
BI10R-W30-DAN6X-H1141
Tekniska data
Downloads
Special features
Ring sensor, dynamic output
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type
Design
Ring sensor

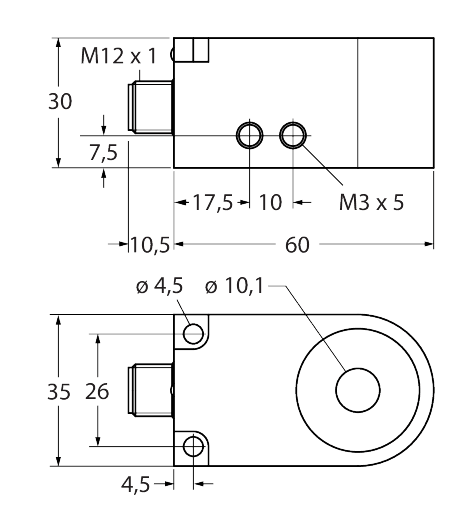

Dimensions
60 mm x 35 mm x 30 mm
Housing material
Plastic
Housing quality
PA12-GF30
Inside ring diameter D (mm)
10.1
Operating voltage
DC
Output function
NPN
Protection class
IP67
Switching frequency (kHz)
0.008
Nyckelfunktioner
Electrical connection
Connector
Output function
NPN
