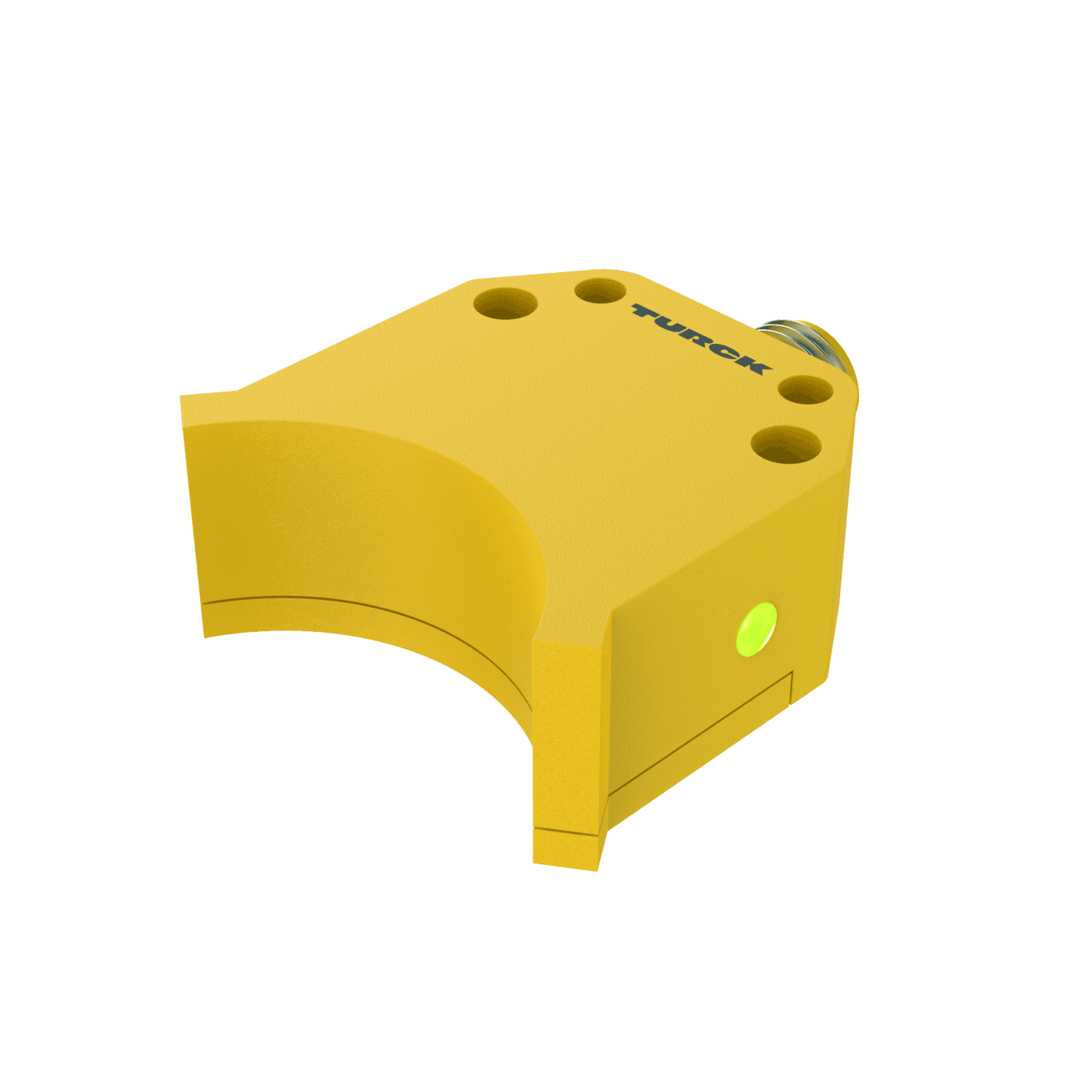

Inductive Sensor
NI4-DS20-2Y1X2-H1140
Order ID nr. 1050001
I lager
Varugrupp
E1
Listpris
1 418,00 kr
Totalt för artikeln
1 418,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Electrical connection
Connector
Connector type

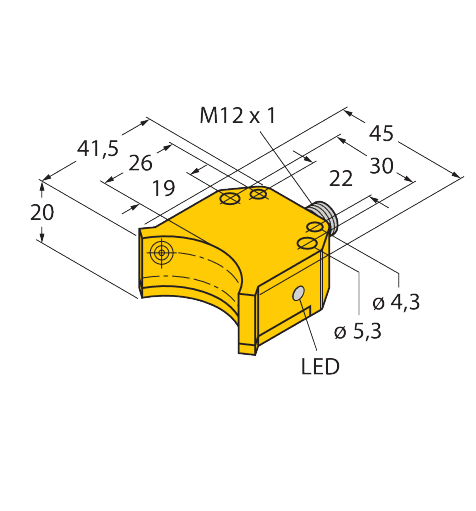

Dimensions
41,5 mm x 45 mm x 20 mm
Housing material
Plastic
Housing quality
PBT-GF30-V0
Operating voltage
DC
Output function
NAMUR
Protection class
IP67
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
4
Switching frequency (kHz)
0.05
Nyckelfunktioner
Electrical connection
Connector
Output function
NAMUR
Rated switching distance (mm)
4
