Inductive Sensor

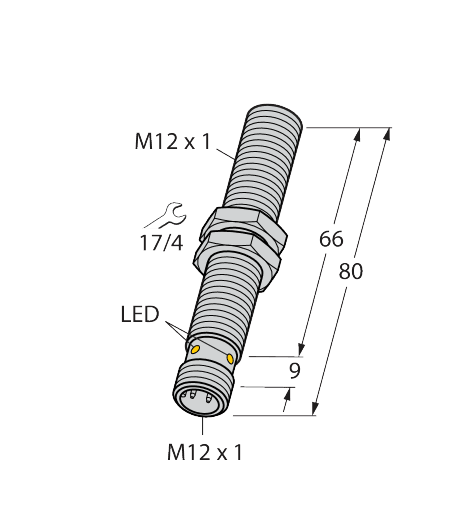

BI4U-EM12WD-VP6X-H1141 L80

Order ID nr. 100000768

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Connector type
Construction size: ⌀ 12 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 4
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching element function: Complementary contact
Switching frequency (kHz): 3
