Inductive Sensor

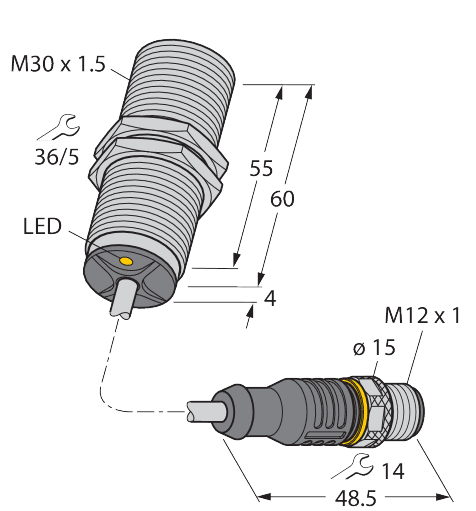

BI12-M30-AD6X-0.3-RS4.23
Order ID nr. 100000662
I lager
Varugrupp
E1
Listpris
660,00 kr
Totalt för artikeln
660,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Sensors
Inductive Sensors
BI12-M30-AD6X-0.3-RS4.23
Tekniska data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Cable length (m)
0.3
Electrical connection
Cable with connector
Connector type
Design
Threaded barrel
Construction size
⌀ 30 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Operating voltage
DC
Output function
2-wire
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
12
Switching frequency (kHz)
1
Nyckelfunktioner
Electrical connection
Cable with connector
Output function
2-wire
Rated switching distance (mm)
12
