RI-12H10E1-2B2048-H1181 | TURCK - Your Global Automation Partner
Incremental Encoder

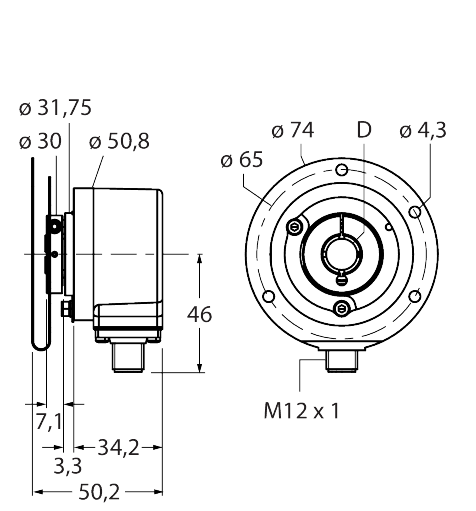

RI-12H10E1-2B2048-H1181
Order ID nr. 1544906
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Connector type
Design
Hollow shaft
Electrical connection
Connector
Encoder line
Industrial-Line
Flange diameter (mm)
65
Flange type
Flange with stator coupling
Housing material
Die-cast zinc
Measuring principle
Optical
Output function
Push-Pull/HTL
Output type
Incremental
Protection class
IP67
Protection class shaft
IP67
Resolution incremental (ppr)
2048
Shaft diameter D (mm)
10 mm
Shaft Type
Hollow shaft
Technology
Optical
Nyckelfunktioner
Output type
Incremental
Flange diameter (mm)
65
Shaft diameter D (mm)
10 mm
Shaft Type
Hollow shaft
I lager
Varugrupp
F3
Listpris
5 082,00 kr
home
Turck-Shop
Sensors
Encoders
RI-12H10E1-2B2048-H1181
Totalt för artikeln
5 082,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
