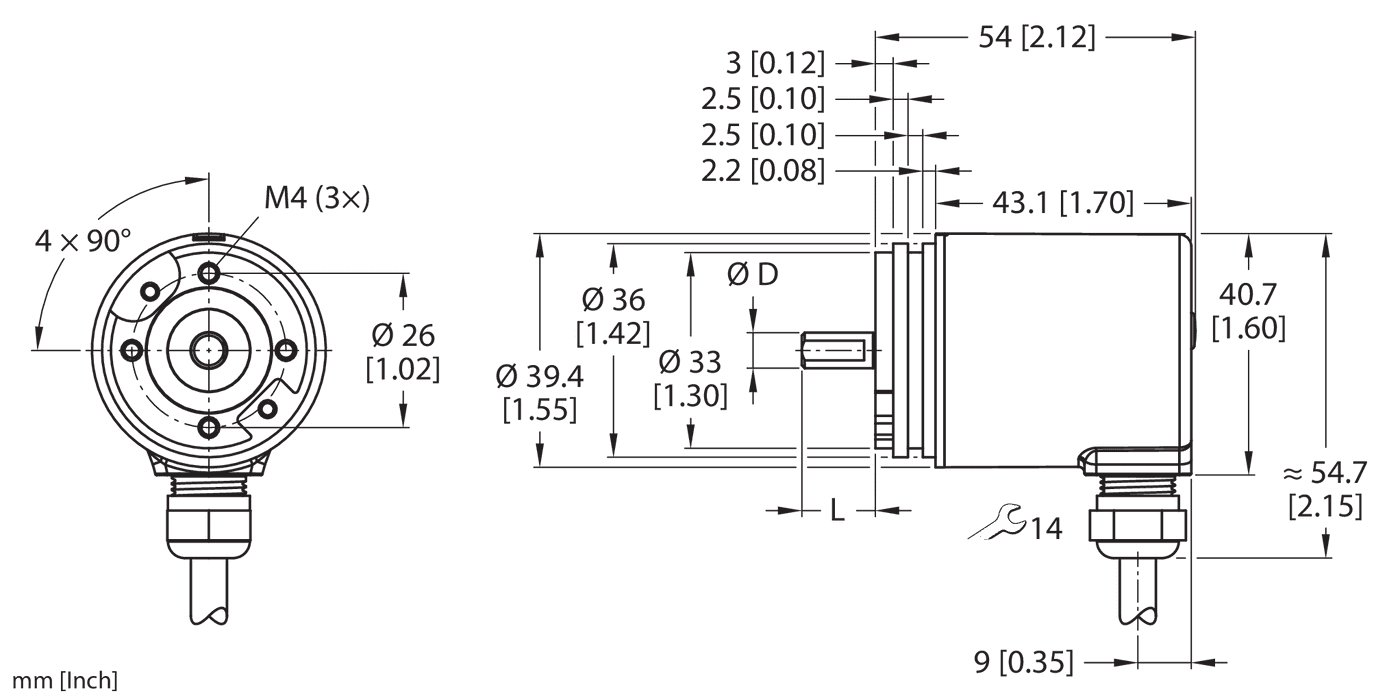

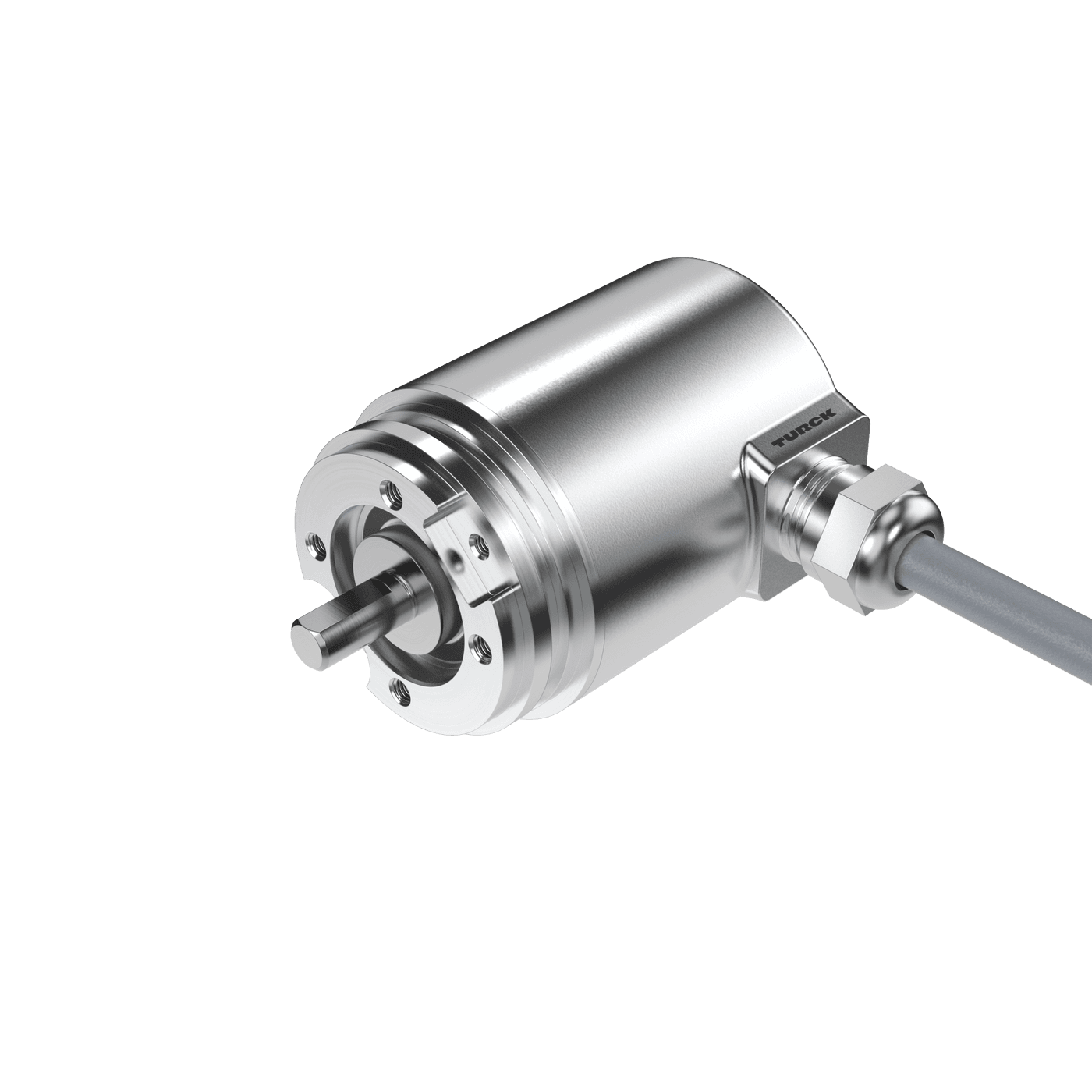

Absolute Rotary Encoder - Singleturn
RES-184S6S-9D14B-C 1M
Order ID nr. 100054629
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Communication protocol
CANopen
Connector type
Open end
Design
Solid shaft
Electrical connection
Cable
Encoder line
Industrial-Line
Flange diameter (mm)
36
Flange type
Synchro flange
Housing material
Die-cast zinc
Measuring principle
Magnetic
Output type
Absolute singleturn
Protection class
IP67
Protection class shaft
IP67
Shaft diameter D (mm)
6 mm
Shaft Type
Solid shaft
Technology
Magnetic
Nyckelfunktioner
home
Turck-Shop
Sensors
Encoders
RES-184S6S-9D14B-C 1M
Output type
Absolute singleturn
Flange diameter (mm)
36
Shaft diameter D (mm)
6 mm
Shaft Type
Solid shaft
I lager
Varugrupp
F3
Listpris
3 899,00 kr
Totalt för artikeln
3 899,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
