Inductive Sensor

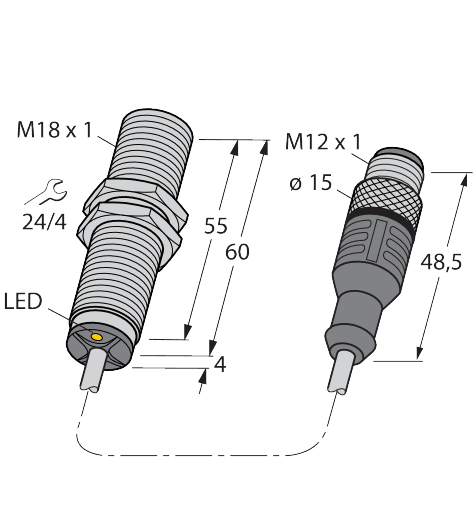

BI5U-MT18M-AD4X-0.3-RS4.23/XOR

Order ID nr. 4405049

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Cable color: Orange
Cable length (m): 0.3
Connector type
Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Cable with connector
Housing material: Metal
Housing quality: CuZn
Housing surface: PTFE-coated
Operating voltage: DC
Output function: 2-wire
Protection class: IP68
Quality active face: LCP
Rated switching distance (mm): 5
Special features: Factor 1, PTFE-coated, Resistant to magnetic fields, uprox+
Switching frequency (kHz): 0.01
