Inductive Sensor For the food industry

NI12U-EM18WD-AN6X/S50-S1163 10M

Order ID nr. 1645356

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -40
Cable length (m): 10

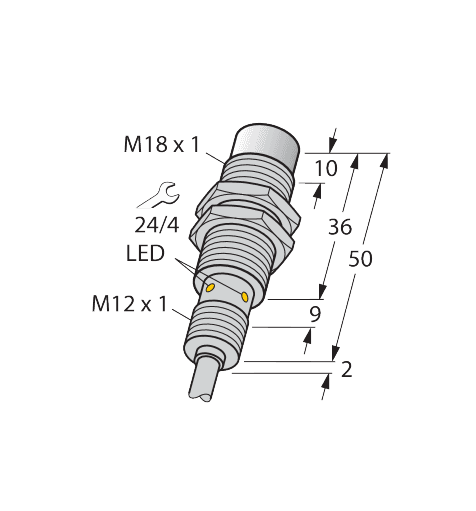

Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Cable
Housing material: Stainless steel
Housing quality: 1.4404 (AISI 316L)
Operating voltage: DC
Output function: NPN
Protection class: IP68, IP69K
Quality active face: LCP
Rated switching distance (mm): 12
Special features: Factor 1, Pressure resistant, Resistant to magnetic fields, Sn +, uprox+, Wash down
Switching frequency (kHz): 1
