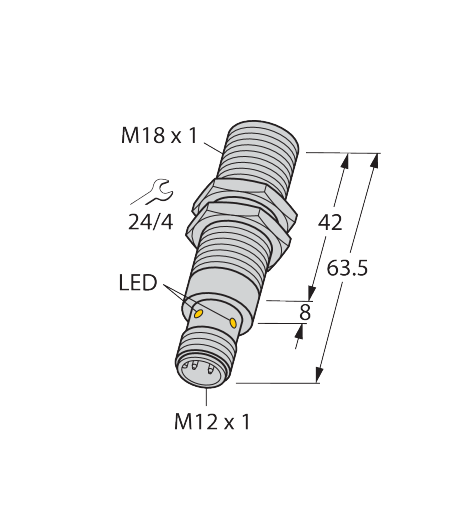

Inductive Sensor Stainless Steel Front

BI10-EG18FE-AP6X-H1141/S34

Order ID nr. 100000224

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Connector type
Construction size: ⌀ 18 mm
Design: Threaded barrel
Electrical connection: Connector
Housing material: Stainless steel
Housing quality: 1.4305 (AISI 303)
Operating voltage: DC
Output function: PNP
Protection class: IP68, IP69K
Quality active face: 1.4305 (AISI 303)
Rated switching distance (mm): 10
Special features: All-metal sensor, Pressure resistant, Resistant to magnetic fields
Switching frequency (kHz): 0.2
