PVD100 | TURCK - Your Global Automation Partner
Pick-to-Light
PVD100
Order ID nr. 3070988
home
Home
Loading...
Tekniska data
Downloads
Base unit
PCE
EAN/UPC code
662488709884
Gross weight
228
Height
30
Length
290
Net weight
228
Dimension unit
MMT
Weight unit
GRM
Volume
783
Volume unit
CMQ
Width
90
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
0
Cable length (m)
2
Electrical connection
Cable
Design
Rectangular
Scan field (mm)
100

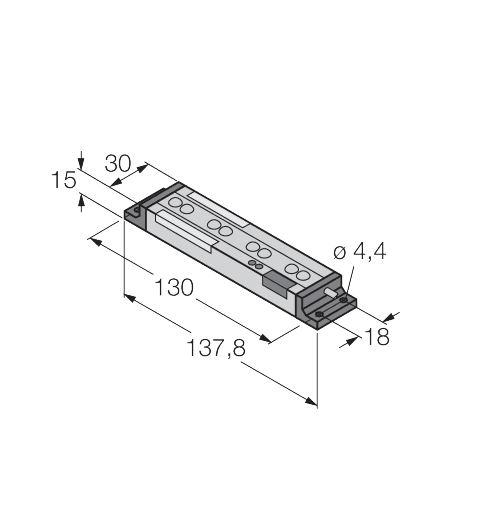

Dimensions
137,8 mm x 30 mm x 15 mm
Housing material
Metal
Housing quality
AL
Housing surface
Black
Input type
Bipolar (PNP/NPN)
Light type
Red
Number of beams
4
Number of colors/segments
2
Operating voltage
DC
Optical resolution (mm)
28.6
Output function
PNP/NPN
Protection class
IP62
Max. range (mm)
400
Switching element function
Wavelength (nm)
630
Nyckelfunktioner
Scan field (mm)
100
Light type
Red
Number of colors/segments
2
Output function
PNP/NPN
I lager
Varugrupp
F3
Listpris
4 648,00 kr
