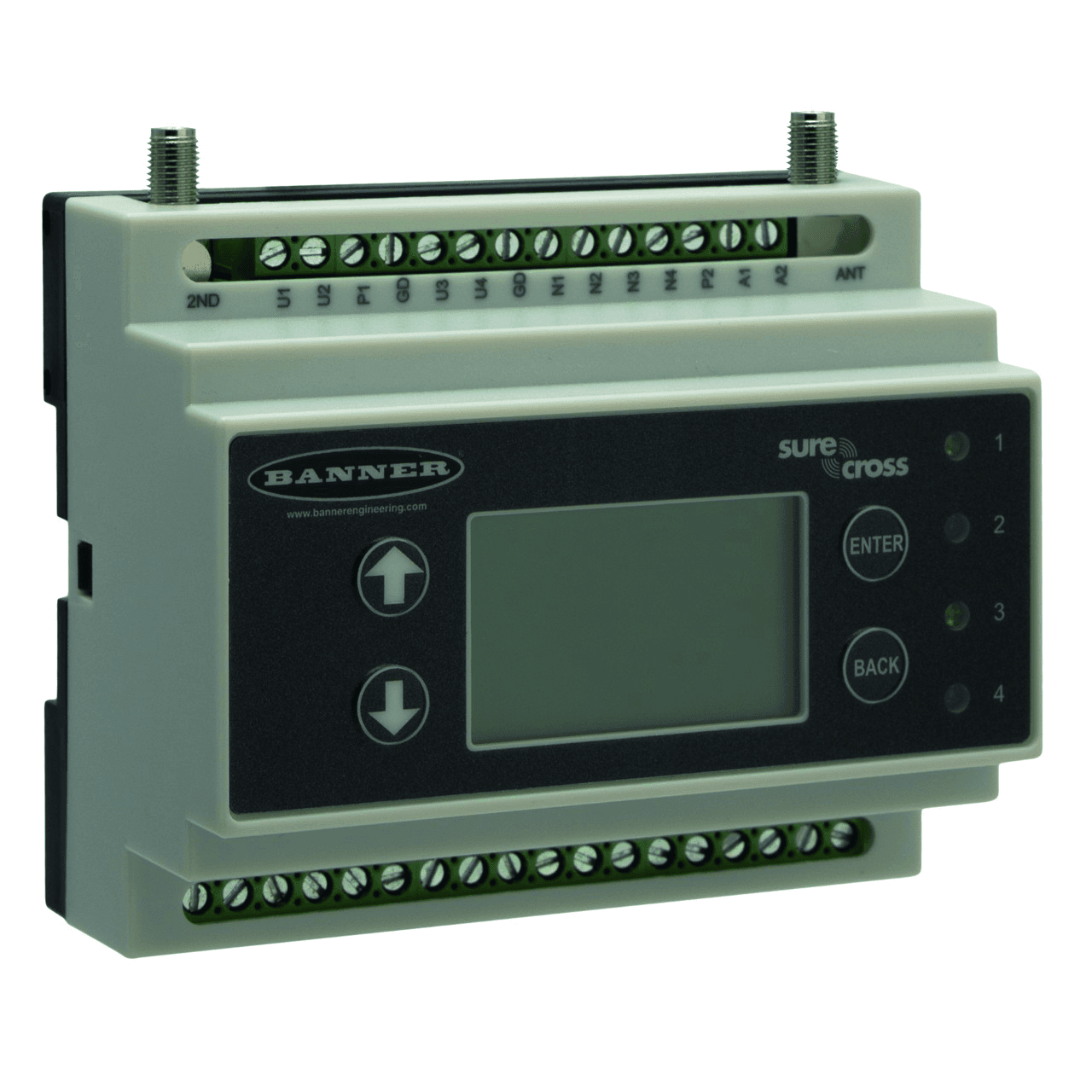

Network Controller With Integrated 900-MHz Data Radio
DXM100-S1R2
Order ID nr. 3095656
I lager
Varugrupp
F3
Listpris
8 075,00 kr
Totalt för artikeln
8 075,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
Begär offert
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Antenna connection
RP-SMA female connector
Communication protocol
Modbus RTU, RS232, RS485
Design
Rectangular

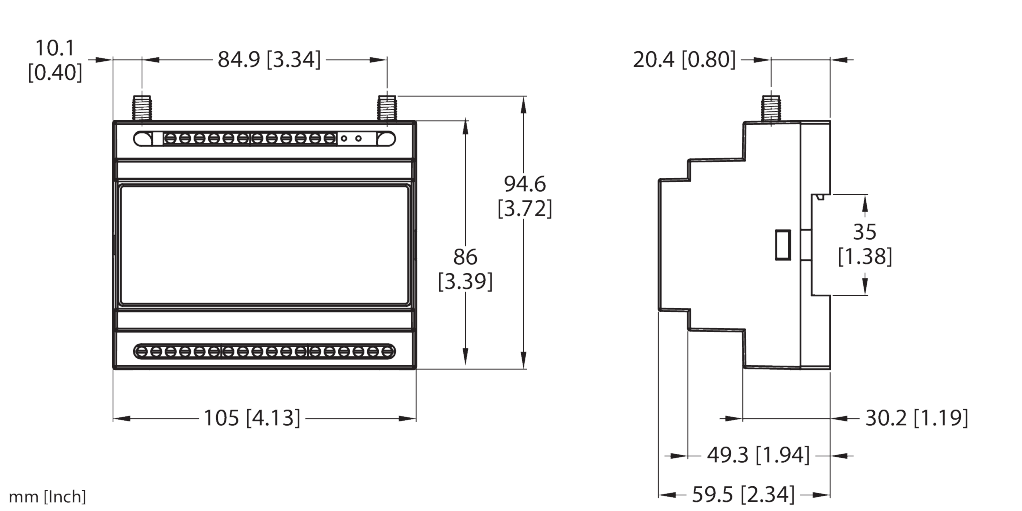

Dimensions
86 mm x 105 mm x 59,45 mm
Electrical connection
Screw terminals
Frequency band
2.4-GHz ISM band
Frequency range
2.402–2.483 GHz
Function
Tree topology
Housing material
Plastic
Housing quality
PC
Housing surface
Grey
Max. range (mm)
3200000
Operating voltage
DC
Output function
PNP/NPN, analog output
Protection class
IP20
Runs with battery
No
Switching element function
Programmable
Nyckelfunktioner
Communication protocol
Modbus RTU, RS485, RS232
Function
Tree topology
