piconet stand-alone module for PROFIBUS-DP 2-channel Pulse Width Modulation (PWM)
SDPB-0002D-1002
Order ID nr. 6824437
I lager
Varugrupp
D1
Listpris
6 324,00 kr
Totalt för artikeln
6 324,00 kr
Kvantitet
−
+
add_shopping_cart
Lägg i kundvagn
home
Turck-Shop
Fieldbus Technology
I/O Modules
SDPB-0002D-1002
Tekniska data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Connection technology signal
M12
Device type
Compact station, I/O Module

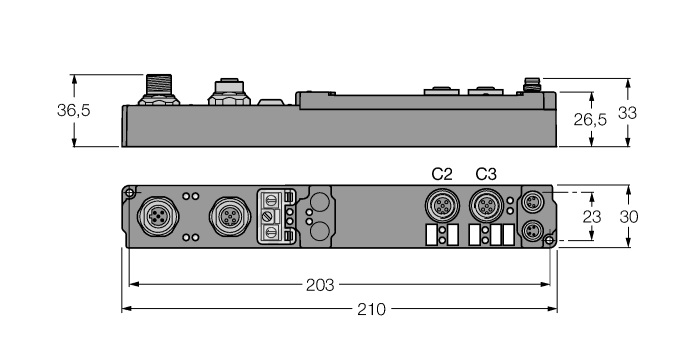

Dimensions
210 mm x 30 mm x 26,5 mm
Fieldbus connection technology
Fieldbus transmission rate
9.6 kbps …12 Mbps
Network protocol
PROFIBUS-DP
Number of channels
2
Operating voltage
DC
Protection class
IP67
Signal type
PWM
Voltage supply connection
Nyckelfunktioner
Connection technology signal
M12
Network protocol
PROFIBUS-DP
Protection class
IP67
Signal type
PWM
