TBEN-ELL-8IOLA | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

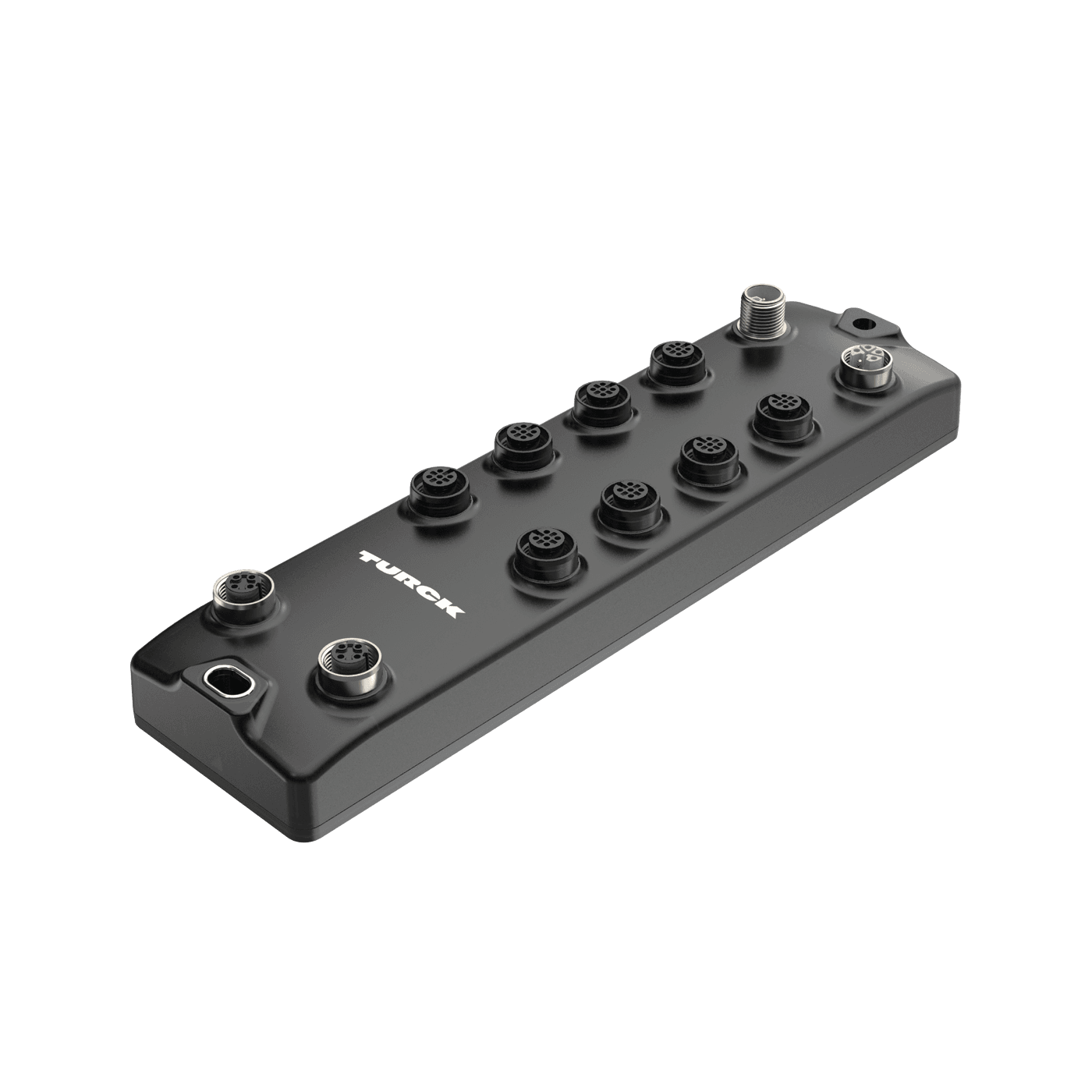

Kompakt I/O-modul med flera protokoll för Ethernet 8 IO-Link masterkanaler
TBEN-ELL-8IOLA
Order ID nr. 100053317
home
Home
Loading...
Tekniska data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-25
Approvals
CE, cULus, UKCA
Connection technology signal
M12
Device type
Compact station, I/O Module

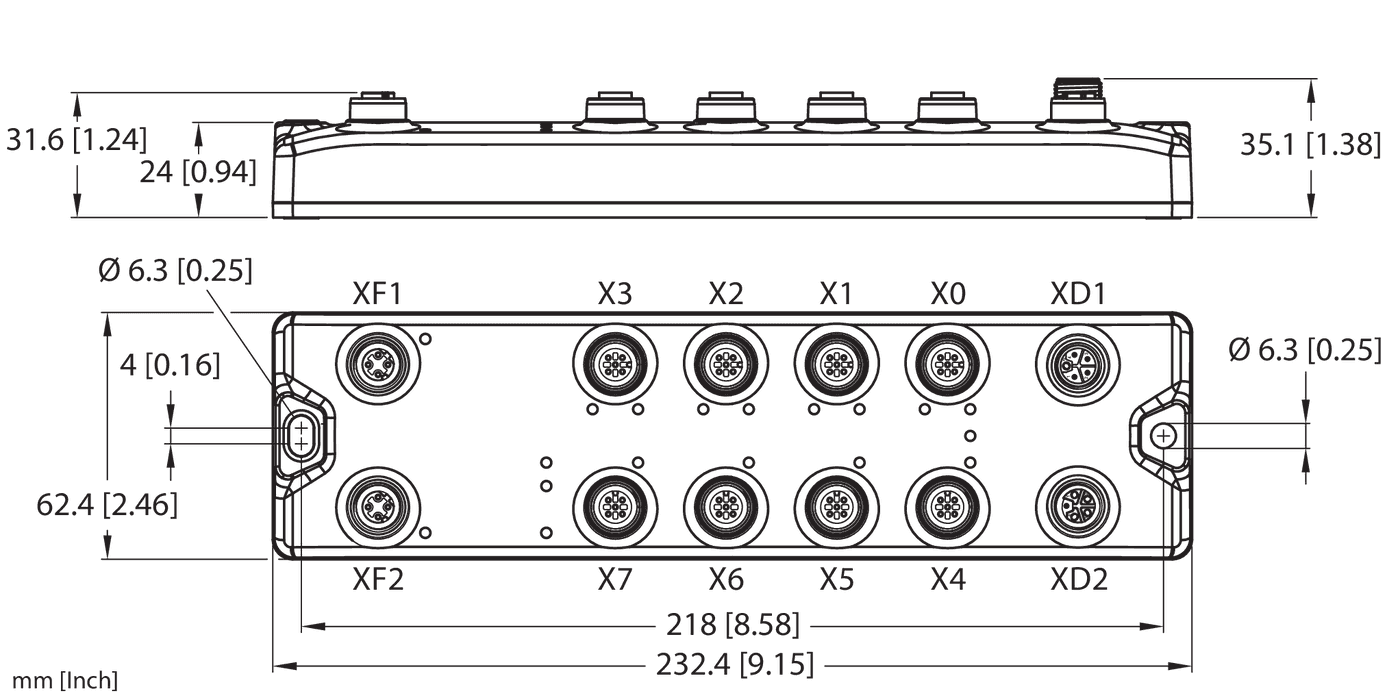

Dimensions
232,4 mm x 62,4 mm x 35,3 mm
Fieldbus transmission rate
10/100 Mbps
Network protocol
CC-Link IE Field Basic, EtherNet/IP, Modbus TCP, PROFINET
Output voltage
24 VDC from potential group
Protection class
IP67
Signal type
Digital input, Digital input/output, Digital output, IO-Link
Voltage supply connection
M12, L-coded
Nyckelfunktioner
Connection technology signal
M12
Network protocol
Modbus TCP, EtherNet/IP, PROFINET, CC-Link IE Field Basic
Protection class
IP67
Signal type
IO-Link, Digital output, Digital input/output, Digital input
I lager
Varugrupp
D1
Listpris
2 808,00 kr
