RSS-8442-5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
Ström via Ethernet
RSS-8442-5M
Order ID nr. 6931584
home
Home
Loading...
Tekniska data
Downloads
Application
Data
Approvals
Cable UL Style 20549
Cable color
Black
Cable diameter (mm)
7.4
Cable length (m)
5
Cable quality
TPU

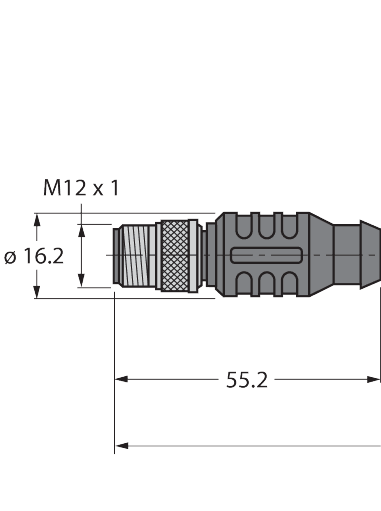

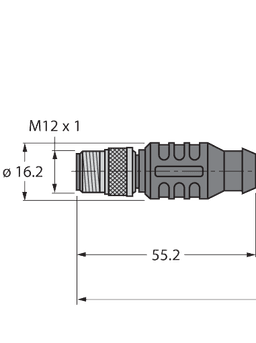

Connector A
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.2
Coupling nut/screw material A
Brass
Current (A)
2
Network protocol
Ethernet
Number of pins
8
Plug body
Plastic
Special features
VARAN/Euromap 75
Voltage (V)
48
Nyckelfunktioner
Cable length (m)
5
Cable quality
TPU
I lager
Varugrupp
K1
Listpris
773,00 kr
